SKU: 6205-2RS/C3-CDX

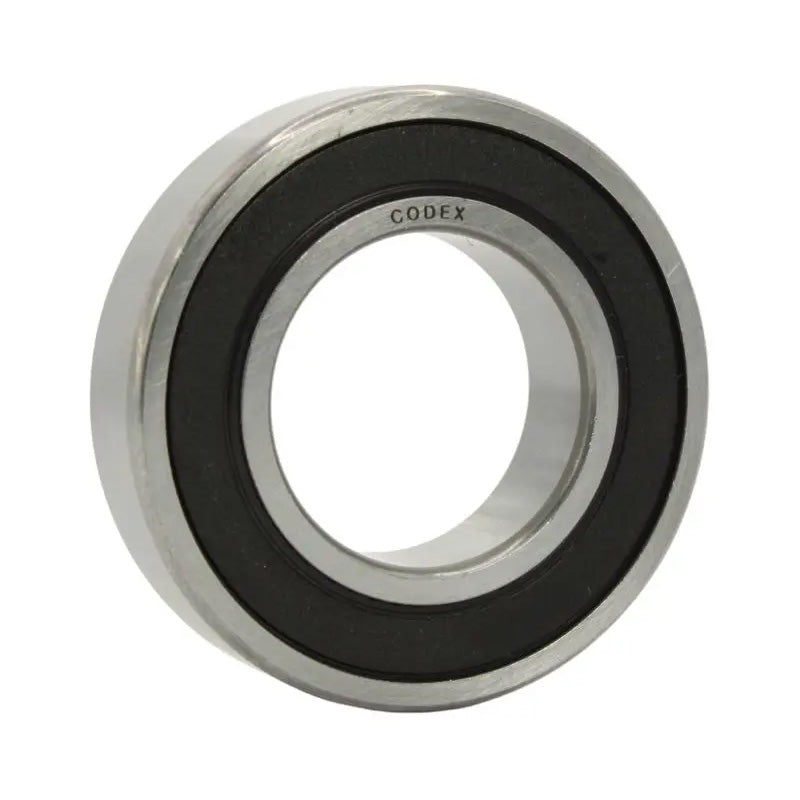

Codex 62052RSC3 Rubber Sealed Deep Groove Ball Bearing 25x52x15mm
Codex 62052RSC3 Rubber Sealed Deep Groove Ball Bearing 25x52x15mm
Regular price
€7,13
ex VAT
Regular price
Sale price
€7,13
ex VAT
Equivalent to: 62052RSC3 62052RSHC3 62052RS1C3 62052RSRC3 62052RSLC3 6205LFSC3 6205EEC3 6205DUC3 6205LLUC3 EL252RSC3 6205PPC3
In stock
Price Break
4+
€5,42
10+
€5,12
20+
€5,05
30+
€4,99
50+
€4,93
75+
€4,87
100+
€4,57
200+
€4,51
250+
€4,45
500+
€4,38
1000+
€4,26
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 14.8 kN |
| Static load Co | 7.8 kN |
| Fatigue load limit Pu | 0.335 |
| Reference speed | 28000 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.13 kg |
| d1 | -mm |
| D2 | 46.3mm |
| r1r2 | 1mm |
| da min | 30.6mm |
| Da max | 46.4mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 14 |
