SKU: 6205-2RSH/C3-EU

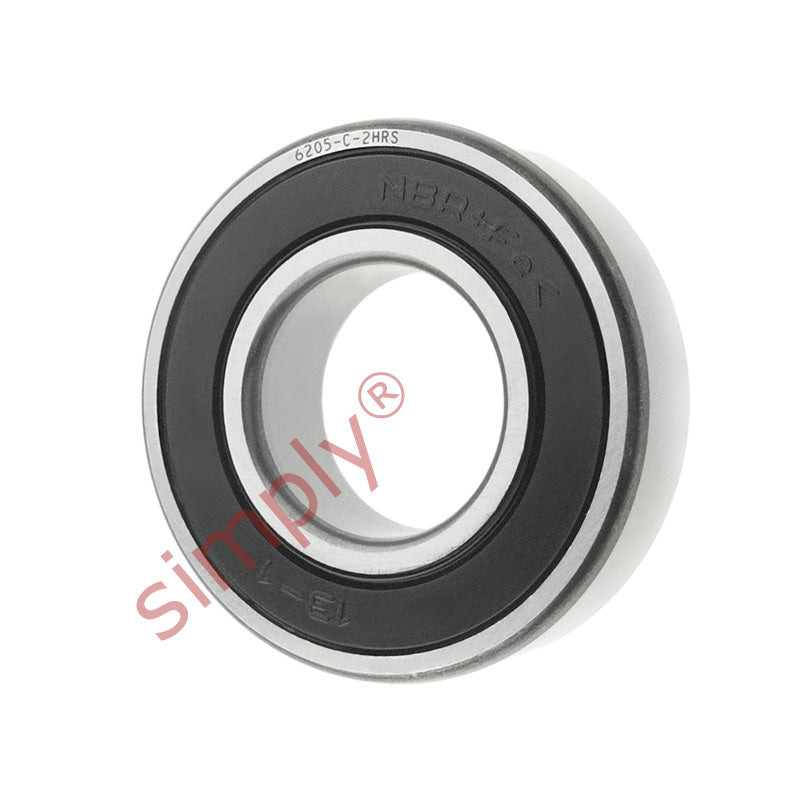

62052RSC3 Budget Rubber Sealed Deep Groove Ball Bearing 25x52x15mm
Equivalent to: 6205NSEC3 6205DUC3 6205RSC3 6205RSHC3 6205PC3 6205RSRC3 6205LUC3 62052NSEC3 6205DDUC3 6205PPC3 62052RSRC3 6205LLUC3 62052RSC3 6205RS2C3 62052RS2C3 62052RS1C3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| r min | 1mm |
| Dynamic load Cr | 14 kN |
| Static load Cor | 7.85 kN |
| Speed in grease | 13000 rpm |
| Speed in oil | 15000 rpm |
