SKU: 6205-2Z/C3-EU

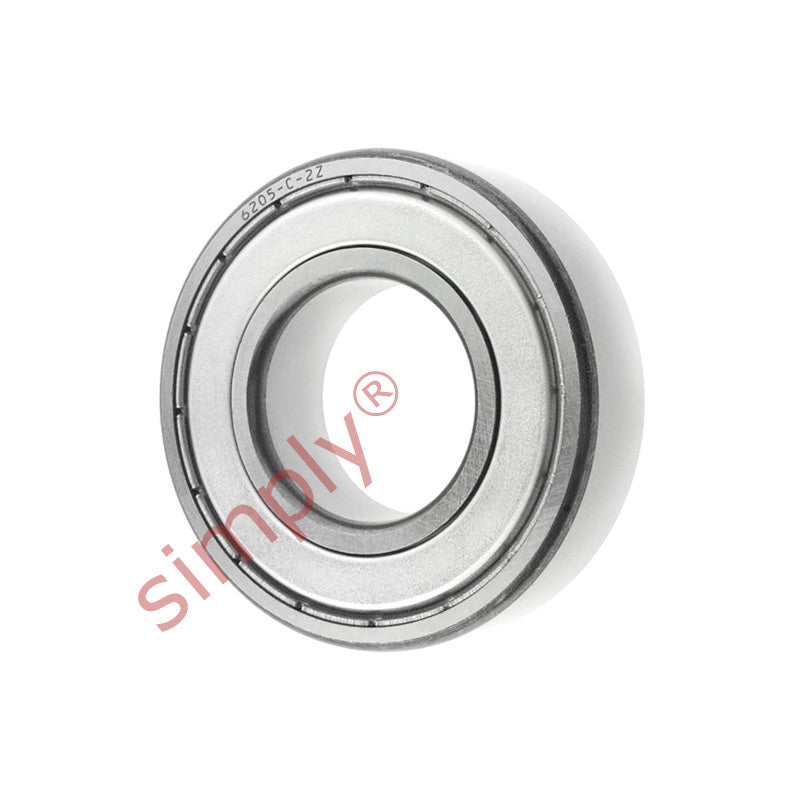

6205ZZC3 Budget Metal Shielded Deep Groove Ball Bearing 25x52x15mm
Equivalent to: 6205.2ZC3 6205KDDC3 6205DDC3 6205FFC3 62052ZRC3 62052ZRC3 6205ZZEC3 6205ZZC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| r min | 1mm |
| Dynamic load Cr | 14 kN |
| Static load Cor | 7.85 kN |
| Speed in grease | 13000 rpm |
| Speed in oil | 15000 rpm |
