SKU: 6206/C2-NACHI

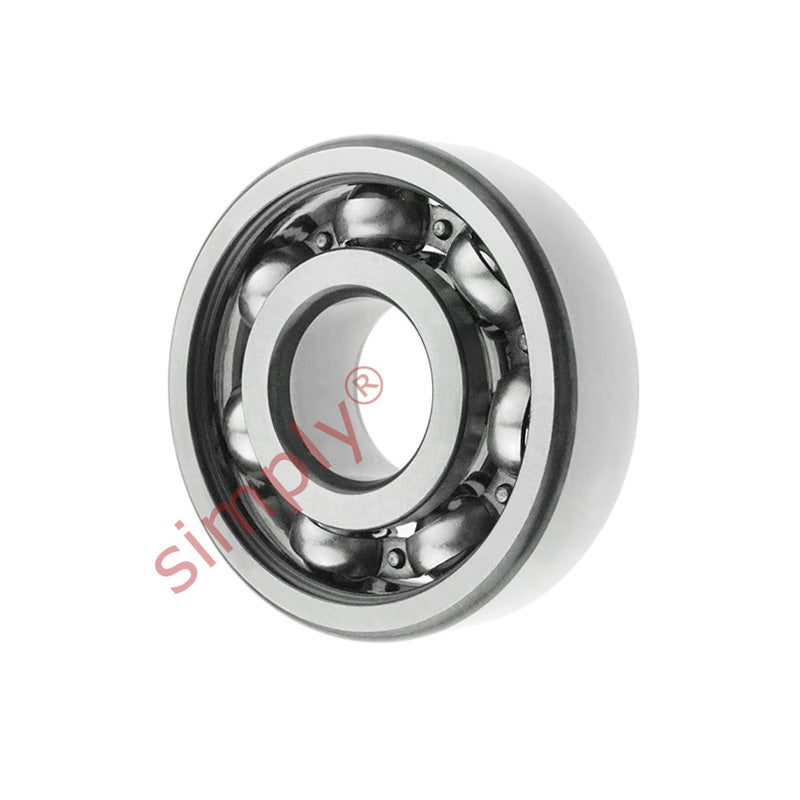

NACHI 6206C2 Open Deep Groove Ball Bearing 30x62x16mm
NACHI 6206C2 Open Deep Groove Ball Bearing 30x62x16mm
Regular price
€18,34
ex VAT
Regular price
Sale price
€18,34
ex VAT
In stock
Price Break
5+
€13,93
9+
€13,15
19+
€12,99
29+
€12,84
49+
€12,68
74+
€12,52
99+
€11,74
199+
€11,59
249+
€11,43
499+
€11,27
999+
€10,96
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- C2
Technical
Technical
| Inside Diameter d | 30mm |
|---|---|
| Outside Diameter D | 62mm |
| Width B | 16mm |
| Min radius r | 1mm |
| Dynamic load | 19500 kN |
| Static load | 11300 kN |
| Max speed in oil | 13000 rpm |
| Max speed in grease | 11000 rpm |
| da min | 36mm |
| Da max | 56mm |
| ra max | 1mm |
| Weight | 0.199 kg |
