SKU: 6206ZZNR/5K-NTN

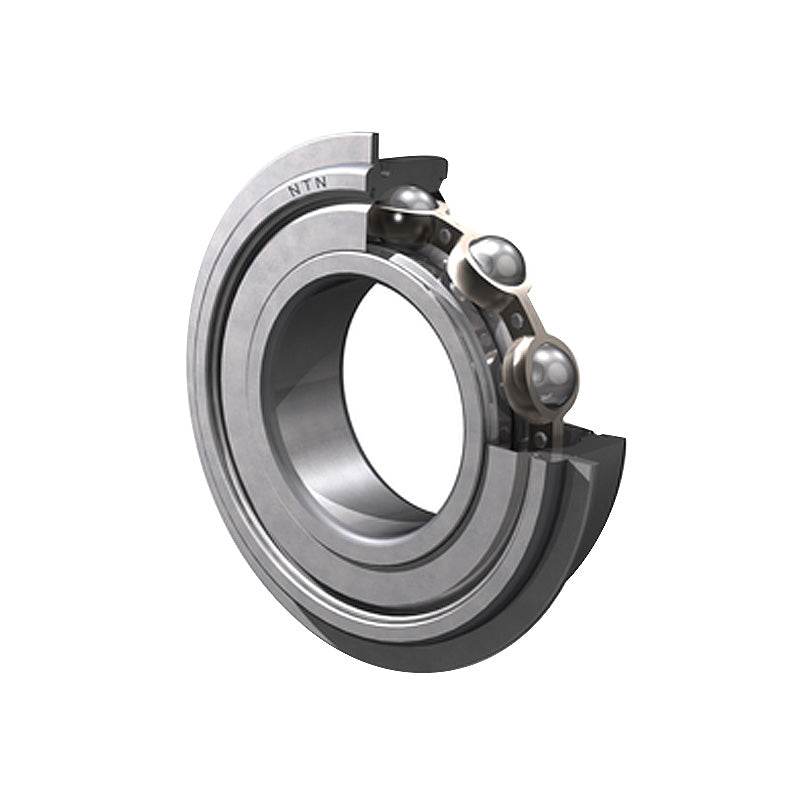

NTN 6206ZZNR/5K Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 30x62x16mm
Equivalent to: 6206ZZNRCM 6206ZZNR 6206ZZNR 62062ZNR 6206ZZNR 62062ZRNR 6206ZZENR 6206FFNR 6206DDNR 6206DDCNR 6206KDDCNR EL302ZNR EL30ZZNR 9106KDDG 4773L06 106KSFFG
In stock
Price Break
Couldn't load pickup availability
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 30mm |
| D | 62mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 21.6 kN |
| C<sub>or</sub> | 11.3 kN |
| C<sub>u</sub> | 0.795 kN |
| f<sub>0</sub> | 13.8 rpm |
| Grease | 11000 rpm |
| --- | Fitting Dimensions |
| Oil | 13000 rpm |
| D<sub>1</sub> Max. | 59.61mm |
| a Max. | 3.28mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
