SKU: 6207-2RS/C3-CDX

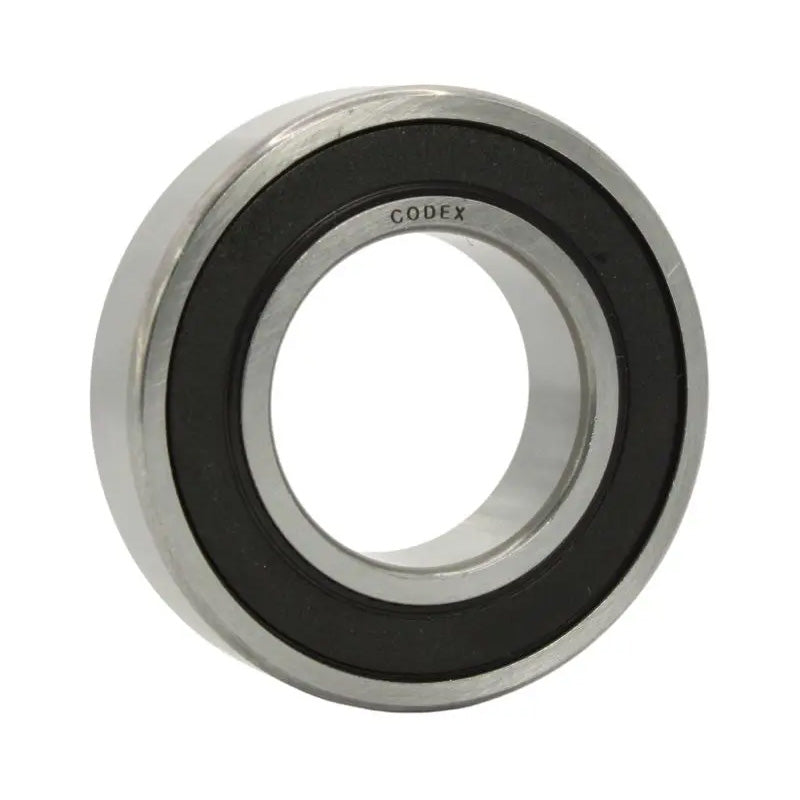

Codex 62072RSC3 Rubber Sealed Deep Groove Ball Bearing 35x72x17mm
Codex 62072RSC3 Rubber Sealed Deep Groove Ball Bearing 35x72x17mm
Regular price
€11,40
ex VAT
Regular price
Sale price
€11,40
ex VAT
Equivalent to: 62072RSC3 62072RSHC3 62072RS1C3 62072RSRC3 62072RSLC3 6207LFSC3 6207EEC3 6207DUC3 6207LLUC3 EL352RSC3 6207PPC3
In stock
Price Break
4+
€8,66
10+
€8,17
20+
€8,08
30+
€7,98
50+
€7,88
75+
€7,78
100+
€7,30
200+
€7,20
250+
€7,10
500+
€7,01
1000+
€6,81
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| Dynamic load C | 27 kN |
| Static load Co | 15.3 kN |
| Fatigue load limit Pu | 0.655 |
| Reference speed | 20000 rpm |
| Limiting speed | 6300 rpm |
| Weight | 0.29 kg |
| d1 | 46.9mm |
| D2 | 62.7mm |
| r1r2 | 1.1mm |
| da min | 42mm |
| Da max | 65mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 14 |
