SKU: 6207LLUC4/5K-NTN

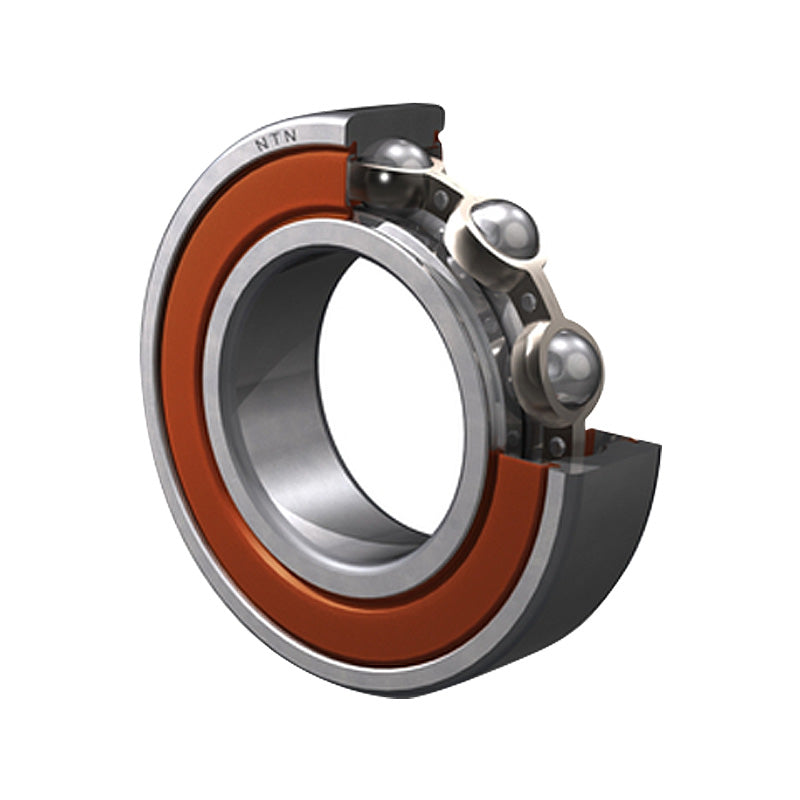

NTN 6207LLUC4/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 35x72x17mm
Equivalent to: 6207NSEC4 6207DUC4 6207RSC4 6207RSHC4 6207PC4 6207RSRC4 6207LUC4 62072NSEC4 6207DDUC4 62072RSC4 6207-2RSC4 62072RS1C4 62072RSHC4 6207PPC4 62072RSRC4 6207LLUC4 6207RS2C4 62072RS2C4 62072RSLC4 6207LFSC4 6207EEC4 1207RC4 207SZC4 207KC4 207PC4 Z9507C4
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C4
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 72mm |
| B | 17mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 28.4 kN |
| C<sub>or</sub> | 15.3 kN |
| C<sub>u</sub> | 1.09 kN |
| f<sub>0</sub> | 13.8 kN |
| Speed | 6300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 41.5mm |
| d<sub>a</sub> Max. | 45mm |
| D<sub>a</sub> Max. | 65.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.288 kg |
