SKU: 6208-2Z/C4VA237-SKF

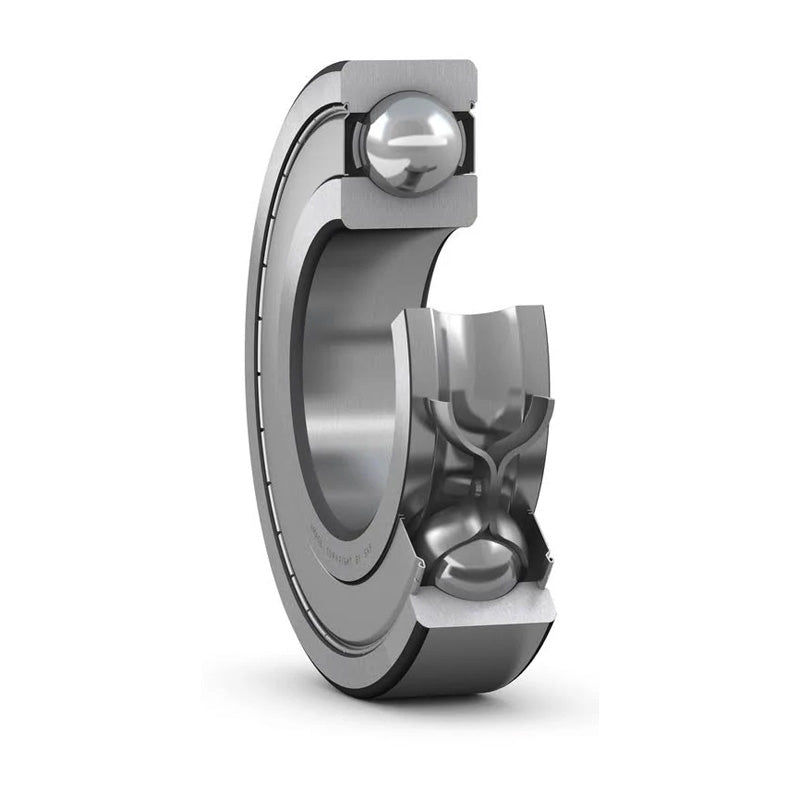

SKF 62082ZC4VA237 Metal Shielded Deep Groove Ball Bearing 40x80x18mm
SKF 62082ZC4VA237 Metal Shielded Deep Groove Ball Bearing 40x80x18mm
Equivalent to: 6208ZZC4VA237 62082Z 62082ZRC4VA237
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C4
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 18mm |
| Dynamic load C | 32.5 kN |
| Static load Co | 19 kN |
| Fatigue load limit Pu | 0.8 kN |
| Reference speed | 18000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.37 kg |
| d1 | 52.6mm |
| D2 | 69.8mm |
| r1r2 min | 1.1mm |
| da min | 47mm |
| Da max | 73mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
