SKU: 6209-2RS1/C3-EU

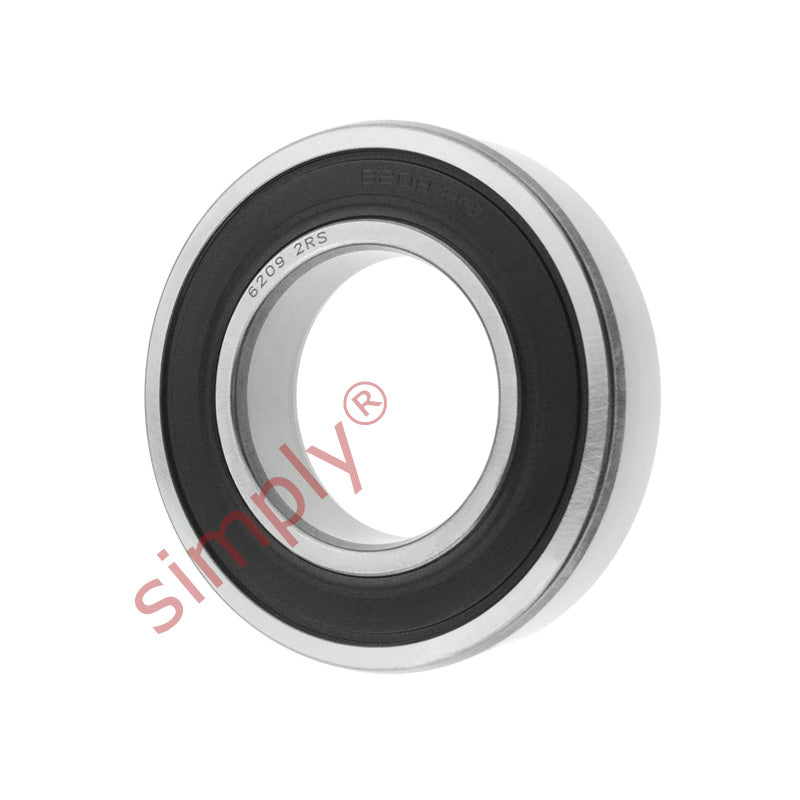

62092RSC3 Budget Rubber Sealed Deep Groove Ball Bearing 45x85x19mm
Equivalent to: 6209NSEC3 6209DUC3 6209RSC3 6209RSHC3 6209PC3 6209RSRC3 6209LUC3 62092NSEC3 6209DDUC3 6209PPC3 62092RSRC3 6209LLUC3 62092RSC3 62092RSC3 62092RS2C3 62092RS1C3 62092RSHC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| r min | 1.1mm |
| Dynamic load Cr | 32.7 kN |
| Static load Cor | 20.3 kN |
| Speed in grease | 7700 rpm |
| Speed in oil | 9200 rpm |
