SKU: 6209-2Z/C4VT127B-SKF

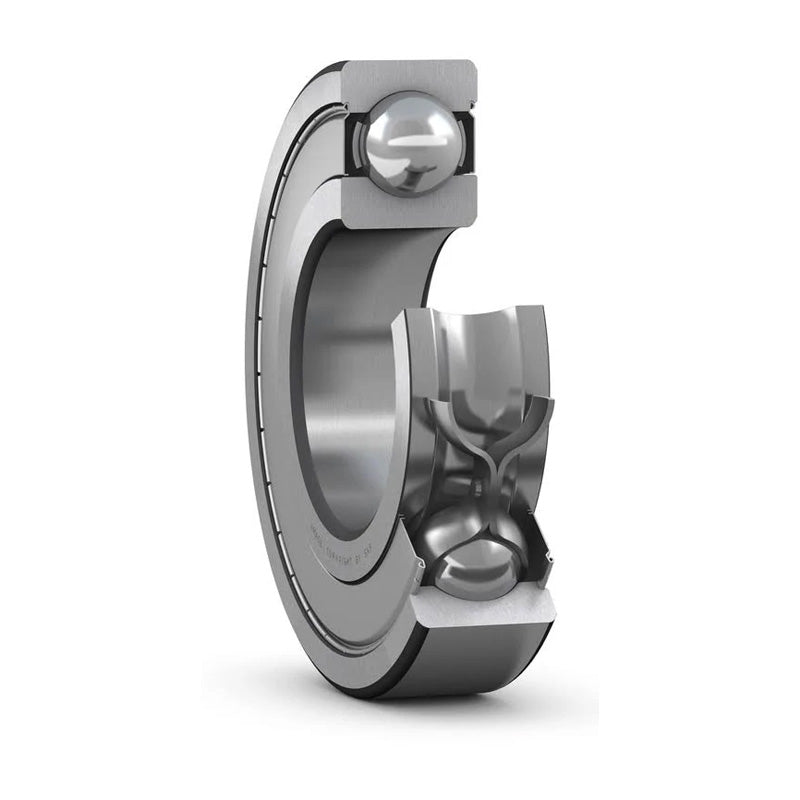

SKF 62092ZC4VT127B Metal Shielded Deep Groove Ball Bearing 45x85x19mm
SKF 62092ZC4VT127B Metal Shielded Deep Groove Ball Bearing 45x85x19mm
Equivalent to: 6209ZZC4VT127B 62092Z 62092ZRC4VT127B
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C4
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 21.6 kN |
| Fatigue load limit Pu | 0.915 kN |
| Reference speed | 17000 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.41 kg |
| d1 | 57.6mm |
| D2 | 75.2mm |
| r1r2 min | 1.1mm |
| da min | 52mm |
| Da max | 78mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
