SKU: 6209LLU/5K-NTN

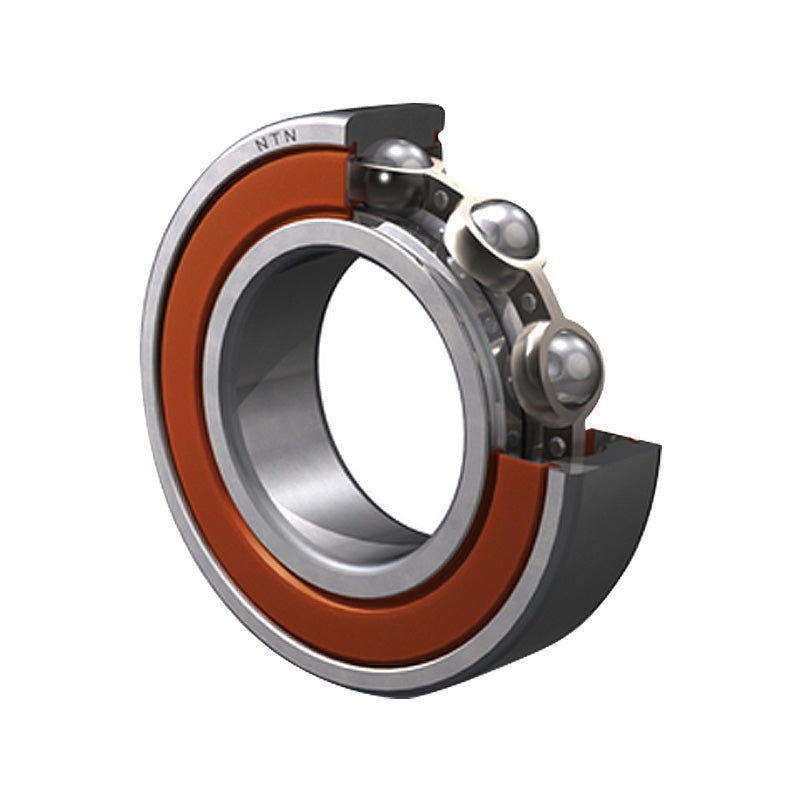

NTN 6209LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 45x85x19mm
Equivalent to: 6209LLUCM 6209NSE 6209DU 6209RS 6209RSH 6209P 6209RSR 6209LU 62092NSE 6209DDU 62092RS 6209-2RS 62092RS1 62092RSH 6209PP 62092RSR 6209LLU 6209RS2 62092RS2 62092RSL 6209LFS 6209EE 1209R 209SZ 209K 209P Z9509
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 45mm |
| D | 85mm |
| B | 19mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 36 kN |
| C<sub>or</sub> | 20.4 kN |
| C<sub>u</sub> | 1.6 kN |
| f<sub>0</sub> | 14.1 kN |
| Speed | 5200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 51.5mm |
| d<sub>a</sub> Max. | 55.5mm |
| D<sub>a</sub> Max. | 78.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.398 kg |
