SKU: 6209LLUC3/5K-NTN

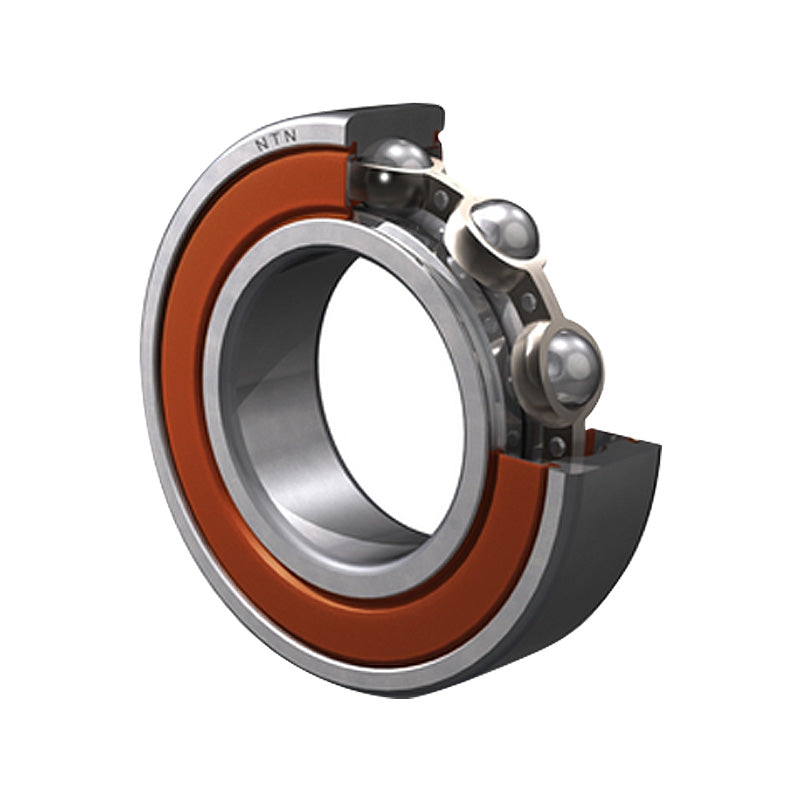

NTN 6209LLUC3/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 45x85x19mm
Equivalent to: 6209NSEC3 6209DUC3 6209RSC3 6209RSHC3 6209PC3 6209RSRC3 6209LUC3 62092NSEC3 6209DDUC3 62092RSC3 6209-2RSC3 62092RS1C3 62092RSHC3 6209PPC3 62092RSRC3 6209LLUC3 6209RS2C3 62092RS2C3 62092RSLC3 6209LFSC3 6209EEC3 1209RC3 209SZC3 209KC3 209PC3 Z9509C3
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 45mm |
| D | 85mm |
| B | 19mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 36 kN |
| C<sub>or</sub> | 20.4 kN |
| C<sub>u</sub> | 1.6 kN |
| f<sub>0</sub> | 14.1 kN |
| Speed | 5200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 51.5mm |
| d<sub>a</sub> Max. | 55.5mm |
| D<sub>a</sub> Max. | 78.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.398 kg |
