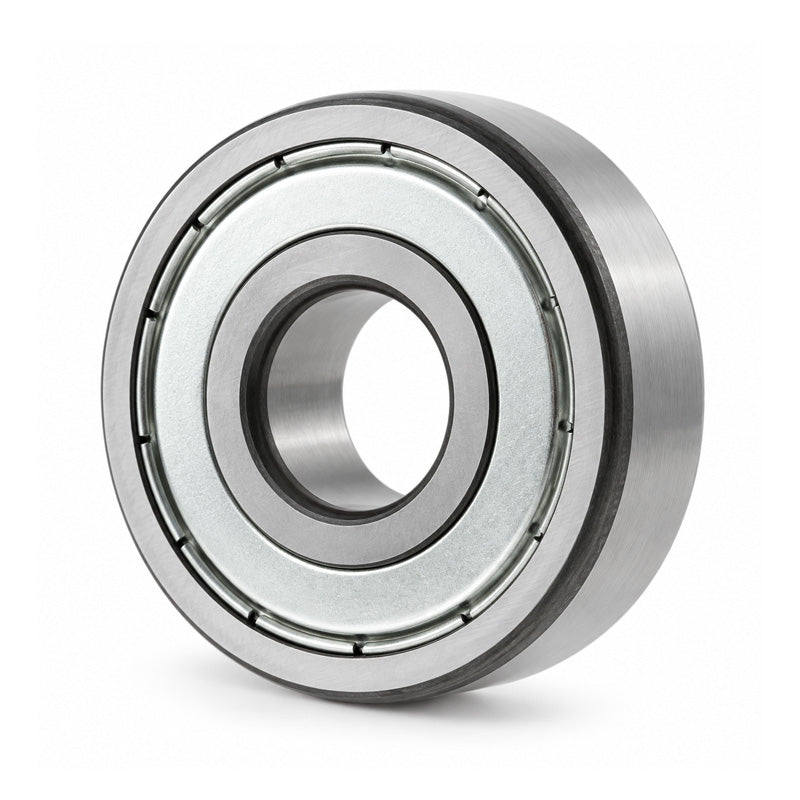

• NACHI 6210ZZEC3 Metal Shielded Deep Groove Ball Bearing 50x90x20mm
  • Nachi
1 2

SKU: 6210-ZZE/C3-NACHI

NACHI 6210ZZEC3 Metal Shielded Deep Groove Ball Bearing 50x90x20mm

NACHI 6210ZZEC3 Metal Shielded Deep Groove Ball Bearing 50x90x20mm
€27,60 ex VAT
€27,60 ex VAT
Sale Sold out

Equivalent to: 6210ZZC3 62102ZC3 6210.2ZC3 6210KDDC3 6210DDC3 62102ZRC3 6210FFC3

In stock

Price Break
5+ €20,98
9+ €19,80
19+ €19,57
29+ €19,33
49+ €19,09
74+ €18,86
99+ €17,68
199+ €17,44
249+ €17,21
499+ €16,97
999+ €16,50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance.
Benefits: High-running accuracy and high-speed operation.
Brand / Quality:
Nachi - High Quality
Inside Diameter:
50mm
Outside Diameter:
90mm
Width:
20mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Technical
Inside Diameter d 50mm
Outside Diameter D 90mm
Width B 20mm
Min radius r 1.1mm
Dynamic load 35000 kN
Static load 23200 kN
Max speed 7100 rpm
da min 57mm
Da max 83mm
ra max 1mm
Weight 0.463 kg
