SKU: 6210LLU/5K-NTN

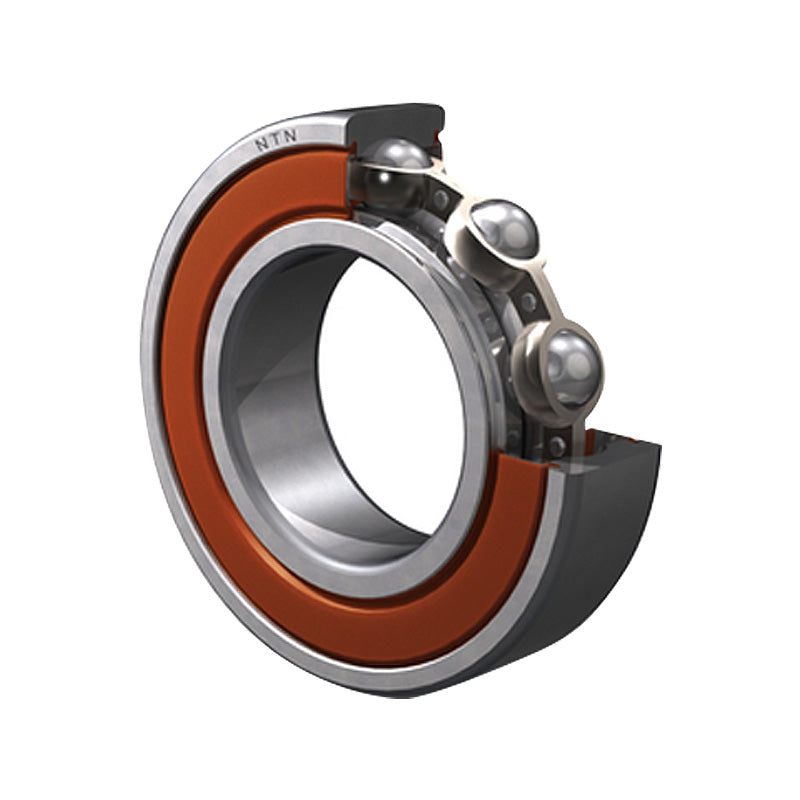

NTN 6210LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 50x90x20mm
Equivalent to: 6210LLUCM 6210NSE 6210DU 6210RS 6210RSH 6210P 6210RSR 6210LU 62102NSE 6210DDU 62102RS 6210-2RS 62102RS1 62102RSH 6210PP 62102RSR 6210LLU 6210RS2 62102RS2 62102RSL 6210LFS 6210EE 1210R 210SZ 210K 210P Z9510
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 50mm |
| D | 90mm |
| B | 20mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 39 kN |
| C<sub>or</sub> | 23.2 kN |
| C<sub>u</sub> | 1.82 kN |
| f<sub>0</sub> | 14.4 kN |
| Speed | 4700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 56.5mm |
| d<sub>a</sub> Max. | 60mm |
| D<sub>a</sub> Max. | 83.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.454 kg |
