SKU: 6211C3-NTN

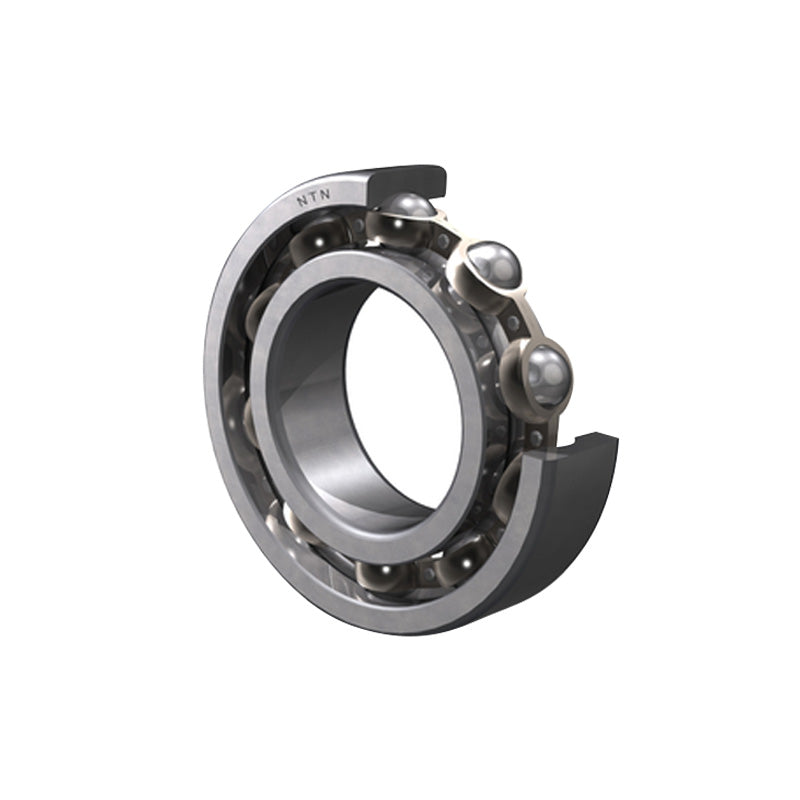

NTN 6211C3 Open Type Deep Groove Ball Bearing 55x100x21mm
NTN 6211C3 Open Type Deep Groove Ball Bearing 55x100x21mm
Regular price
€37,39
ex VAT
Regular price
Sale price
€37,39
ex VAT
Equivalent to: 211KC3 1211C3 211SC3 6211C3 3211C3 8AC3
In stock
Price Break
3+
€28,42
5+
€26,82
10+
€26,50
25+
€26,18
49+
€25,86
74+
€25,54
99+
€23,95
199+
€23,63
249+
€23,31
499+
€22,99
999+
€22,35
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 55mm |
| D | 100mm |
| B | 21mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 48 kN |
| C<sub>or</sub> | 29.2 kN |
| C<sub>u</sub> | 2.29 kN |
| f<sub>0</sub> | 14.3 kN |
| Grease | 6400 rpm |
| Oil | 7600 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 63mm |
| D<sub>a</sub> Max. | 92mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 0.601 kg |
