SKU: 6211LLUC4/2AS-NTN

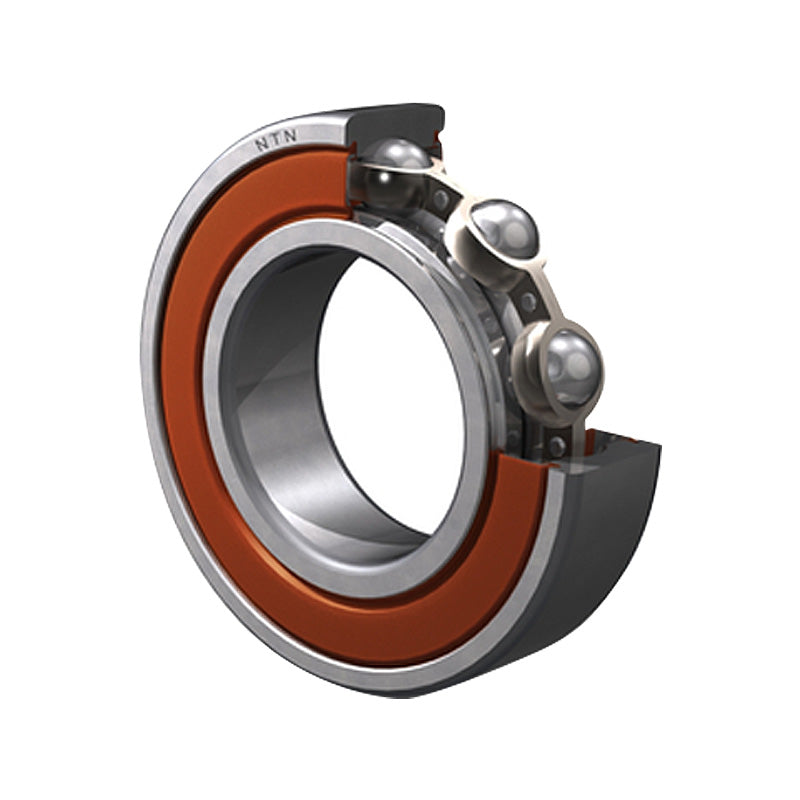

NTN 6211LLUC4/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing 55x100x21mm
Equivalent to: 6211NSEC4 6211DUC4 6211RSC4 6211RSHC4 6211PC4 6211RSRC4 6211LUC4 62112NSEC4 6211DDUC4 62112RSC4 6211-2RSC4 62112RS1C4 62112RSHC4 6211PPC4 62112RSRC4 6211LLUC4 6211RS2C4 62112RS2C4 62112RSLC4 6211LFSC4 6211EEC4 1211RC4 211SZC4 211KC4 211PC4 Z9511C4
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C4
Technical
| --- | Bearing dimensions |
|---|---|
| d | 55mm |
| D | 100mm |
| B | 21mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 48 kN |
| C<sub>or</sub> | 29.2 kN |
| C<sub>u</sub> | 2.29 kN |
| f<sub>0</sub> | 14.3 kN |
| Speed | 4300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 63mm |
| d<sub>a</sub> Max. | 67mm |
| D<sub>a</sub> Max. | 92mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight Kg | 0.601 kg |
