NTN 6211NR Open Type Deep Groove Ball Bearing with Snap Ring 55x100x21mm
NTN 6211NR Open Type Deep Groove Ball Bearing with Snap Ring 55x100x21mm
Regular price
€72,50
ex VAT
Regular price
Sale price
€72,50
ex VAT
Equivalent to: 6211NRCM 211KG 211SG 43211
In stock
Price Break
3+
€55,10
5+
€52,00
10+
€51,39
25+
€50,77
49+
€50,15
74+
€49,53
99+
€46,43
199+
€45,81
249+
€45,19
499+
€44,58
999+
€43,34
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical

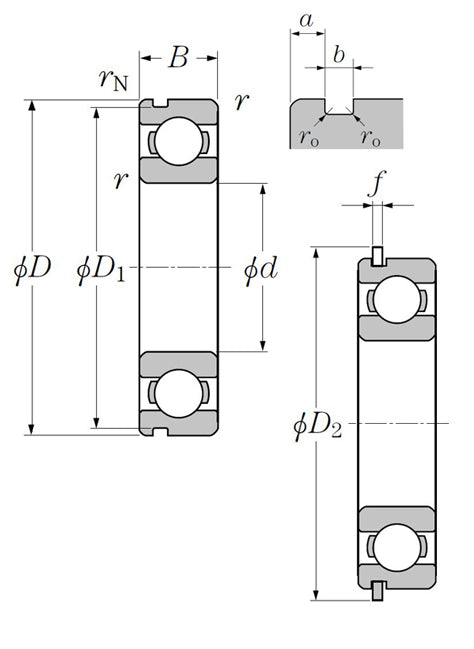

| --- | Bearing dimensions |
|---|---|
| d | 55mm |
| D | 100mm |
| B | 21mm |
| r<sub>s</sub> min | 1.5mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 48 kN |
| C<sub>or</sub> | 29.2 kN |
| C<sub>u</sub> | 2.29 kN |
| f<sub>0</sub> | 14.3 kN |
| Grease | 6400 rpm |
| Oil | 7600 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 96.8mm |
| a Max. | 3.28mm |
| b Min. | 2.7mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 106.5mm |
| f Max. | 2.46mm |

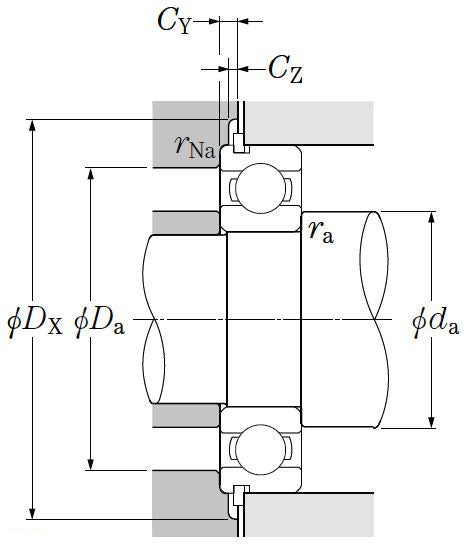

| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 63mm |
| d<sub>a</sub> Max. | 67mm |
| D<sub>a</sub> Max. | 92mm |
| D<sub>X</sub> (approx) | 108mm |
| C<sub>Y</sub> Max. | 5.4mm |
| C<sub>Z</sub> Min. | 2.5mm |
| r<sub>as</sub> Max. | 1.5mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.601 kg |
