SKU: 6212-HT-330-FAG

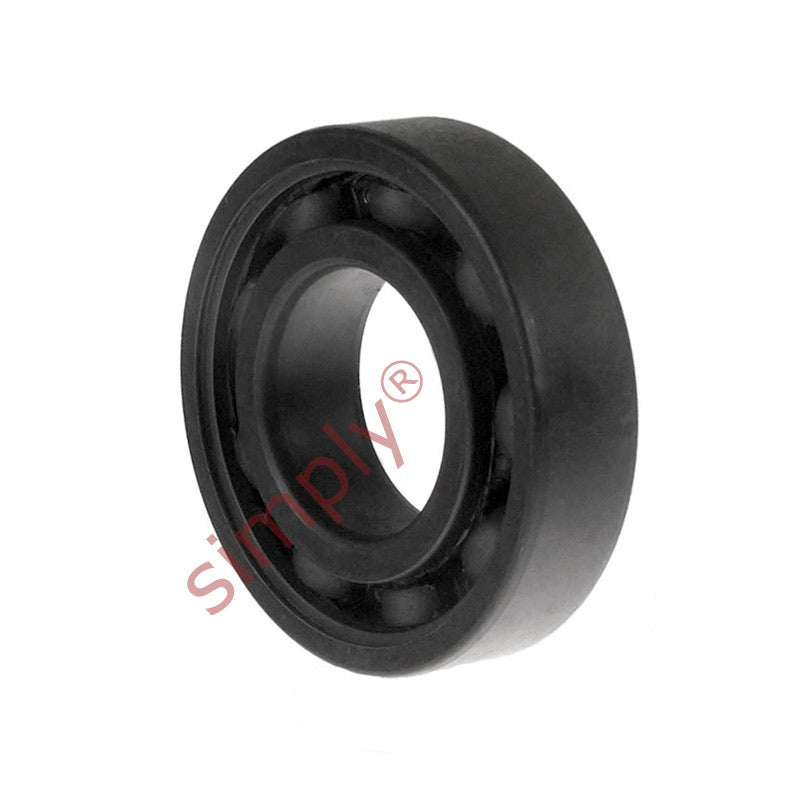

FAG 6212HT330 High Temp 330C Open Deep Groove Ball Bearing 60x110x22mm Max 65rpm
FAG 6212HT330 High Temp 330C Open Deep Groove Ball Bearing 60x110x22mm Max 65rpm
Equivalent to: 6212VA201 6212VA208 6212VA228
Out of stock
Share this product
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 60mm |
|---|---|
| Outside diameter D | 110mm |
| Width W | 22mm |
| Static load max | 20.81 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 65 rpm |
| Weight | 780 g |
