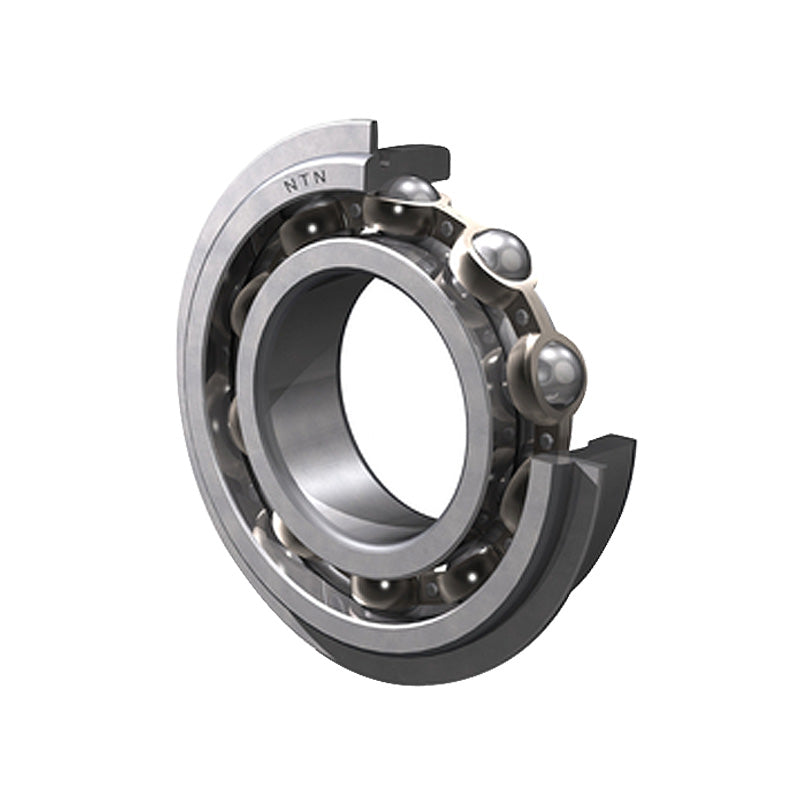

NTN 6214NR Open Type Deep Groove Ball Bearing with Snap Ring 70x125x24mm
NTN 6214NR Open Type Deep Groove Ball Bearing with Snap Ring 70x125x24mm
Regular price
€184,74
ex VAT
Regular price
Sale price
€184,74
ex VAT
Equivalent to: 6214NRCM 214KG 214SG 43214
In stock
Price Break
3+
€140,40
5+
€132,51
10+
€130,93
25+
€129,36
49+
€127,78
74+
€126,20
99+
€118,31
199+
€116,74
249+
€115,16
499+
€113,58
999+
€110,43
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 70mm |
| D | 125mm |
| B | 24mm |
| r<sub>s</sub> min | 1.5mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 69 kN |
| C<sub>or</sub> | 44 kN |
| C<sub>u</sub> | 3.45 kN |
| f<sub>0</sub> | 14.5 kN |
| Grease | 5100 rpm |
| Oil | 6000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 120.22mm |
| a Max. | 4.06mm |
| b Min. | 3.1mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 134.7mm |
| f Max. | 2.82mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 78mm |
| d<sub>a</sub> Max. | 85mm |
| D<sub>a</sub> Max. | 117mm |
| D<sub>X</sub> (approx) | 136.5mm |
| C<sub>Y</sub> Max. | 6.5mm |
| C<sub>Z</sub> Min. | 2.9mm |
| r<sub>as</sub> Max. | 1.5mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 1.07 kg |
