SKU: 6215ZZNR/2AS-NTN

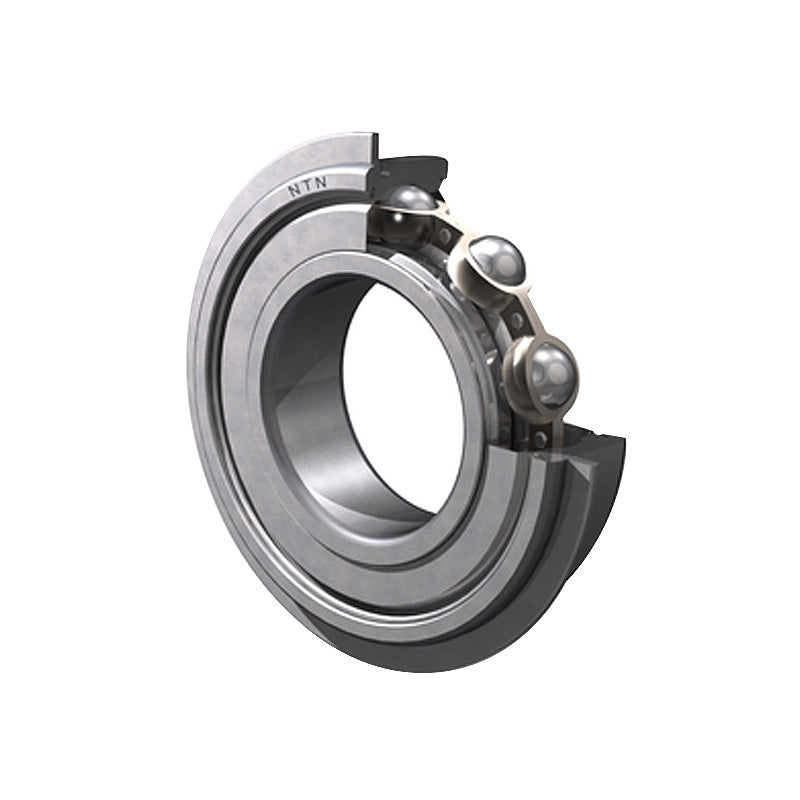

NTN 6215ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 75x130x25mm
Equivalent to: 6215ZZNRCM 6215ZZNR 6215ZZNR 62152ZNR 6215ZZNR 62152ZRNR 6215ZZENR 6215FFNR 6215DDNR 6215DDCNR 6215KDDCNR EL752ZNR EL75ZZNR 9115KDDG 4773L15 115KSFFG
In stock
Price Break
Couldn't load pickup availability
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 25mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 75mm |
| D | 130mm |
| B | 25mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 73.5 kN |
| C<sub>or</sub> | 49.5 kN |
| C<sub>u</sub> | 3.8 kN |
| f<sub>0</sub> | 14.7 rpm |
| Grease | 4800 rpm |
| --- | Fitting Dimensions |
| Oil | 5600 rpm |
| D<sub>1</sub> Max. | 125.22mm |
| a Max. | 4.06mm |
| b Min. | 3.1mm |
| r<sub>o</sub> Max. | 0.6mm |
