SKU: 6216-ZZ-CDX

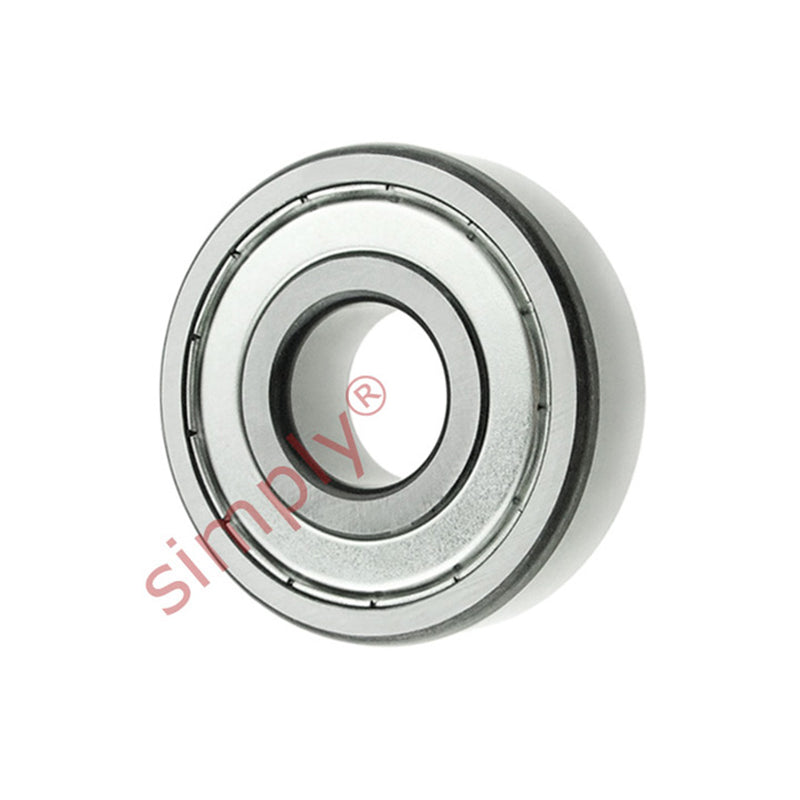

Codex 6216ZZ Metal Shielded Deep Groove Ball Bearing 80x140x26mm
Equivalent to: 6216ZZ 62162Z 62162ZR 6216ZZE 6216FF 6216DD 6216DDC 6216KDDC EL80ZZ EL802Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 80mm |
|---|---|
| D | 140mm |
| B | 26mm |
| Dynamic load C | 72.8 kN |
| Static load Co | 55 kN |
| Fatigue load limit Pu | 2.2 |
| Reference speed | 9500 rpm |
| Limiting speed | 4800 rpm |
| Weight | 1.4 kg |
| d1 | 101mm |
| d2 | 127mm |
| D2 | -mm |
| r1r2 min | 2mm |
| da min | 91mm |
| da max | -mm |
| Da max | 129mm |
| ra max | 2 |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 15 |
