SKU: 6219-ZZ-NACHI

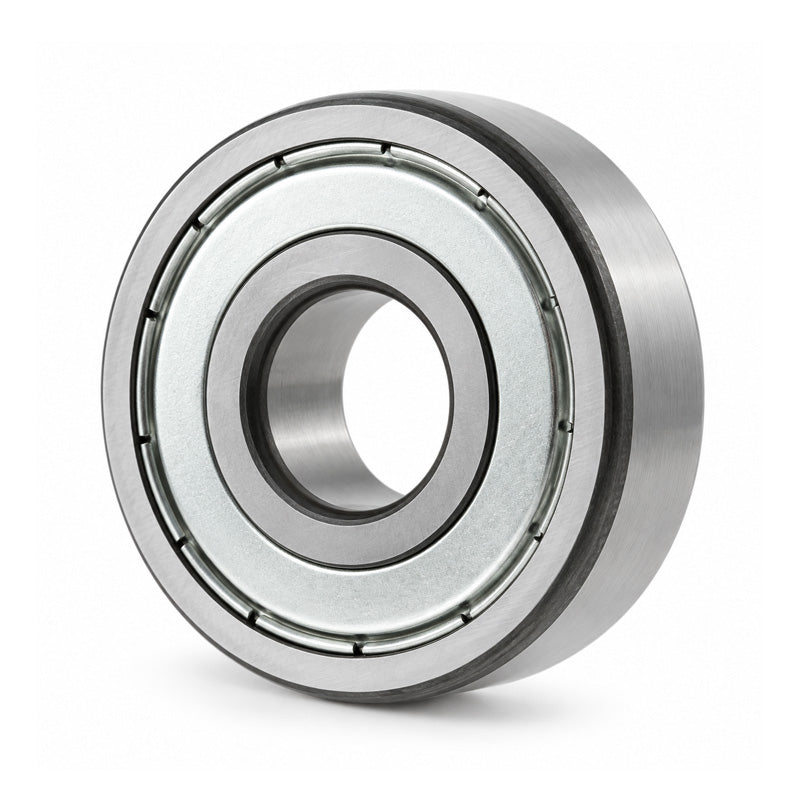

NACHI 6219ZZ Metal Shielded Deep Groove Ball Bearing 95x170x32mm
NACHI 6219ZZ Metal Shielded Deep Groove Ball Bearing 95x170x32mm
Regular price
€182,11
ex VAT
Regular price
Sale price
€182,11
ex VAT
Equivalent to: 6219ZZE 62192Z 6219.2Z 6219KDD 6219DD 62192ZR 6219FF
In stock
Price Break
5+
€138,40
9+
€130,62
19+
€129,07
29+
€127,51
49+
€125,96
74+
€124,40
99+
€116,63
199+
€115,07
249+
€113,52
499+
€111,96
999+
€108,85
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 170mm
- Width:
- 32mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 95mm |
|---|---|
| Outside Diameter D | 170mm |
| Width B | 32mm |
| Min radius r | 2.1mm |
| Dynamic load | 109000 kN |
| Static load | 81500 kN |
| Max speed | 3800 rpm |
| da min | 107mm |
| Da max | 158mm |
| ra max | 2mm |
| Weight | 2.62 kg |
