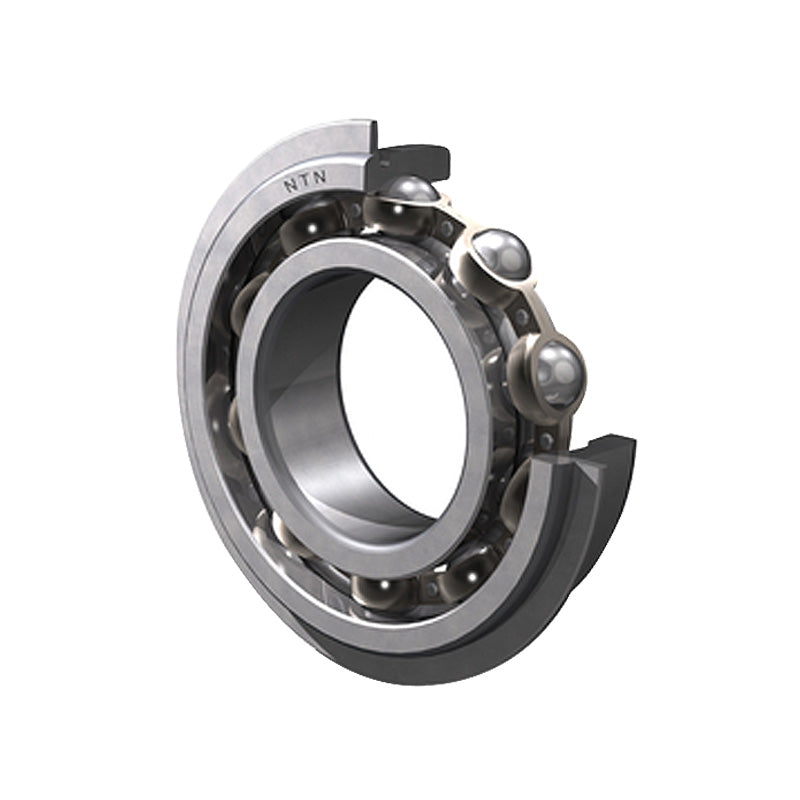

NTN 6220NR Open Type Deep Groove Ball Bearing with Snap Ring 100x180x34mm
NTN 6220NR Open Type Deep Groove Ball Bearing with Snap Ring 100x180x34mm
Regular price
€147,28
ex VAT
Regular price
Sale price
€147,28
ex VAT
Equivalent to: 6220NRCM 220KG 220SG 43220
In stock
Price Break
3+
€111,93
5+
€105,64
10+
€104,38
25+
€103,12
49+
€101,87
74+
€100,61
99+
€94,32
199+
€93,06
249+
€91,80
499+
€90,55
999+
€88,03
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 34mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 180mm |
| B | 34mm |
| r<sub>s</sub> min | 2.1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 135 kN |
| C<sub>or</sub> | 93 kN |
| C<sub>u</sub> | 6.15 kN |
| f<sub>0</sub> | 14.4 kN |
| Grease | 3500 rpm |
| Oil | 4200 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 173.66mm |
| a Max. | 5.69mm |
| b Min. | 3.5mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 192.9mm |
| f Max. | 3.1mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 111mm |
| d<sub>a</sub> Max. | 122mm |
| D<sub>a</sub> Max. | 169mm |
| D<sub>X</sub> (approx) | 195mm |
| C<sub>Y</sub> Max. | 8.4mm |
| C<sub>Z</sub> Min. | 3.1mm |
| r<sub>as</sub> Max. | 2mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 3.14 kg |
