SKU: 6224-NACHI

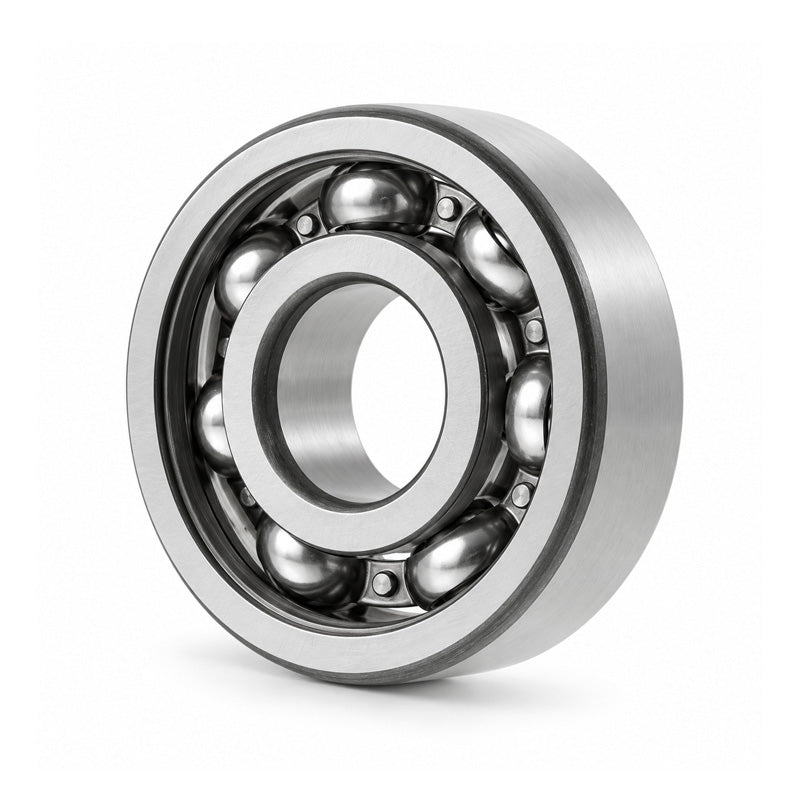

NACHI 6224 Open Deep Groove Ball Bearing 120x215x40mm
NACHI 6224 Open Deep Groove Ball Bearing 120x215x40mm
Regular price
€308,85
ex VAT
Regular price
Sale price
€308,85
ex VAT
In stock
Price Break
5+
€234,71
9+
€221,52
19+
€218,88
29+
€216,25
49+
€213,61
74+
€210,97
99+
€197,79
199+
€195,15
249+
€192,51
499+
€189,88
999+
€184,60
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 120mm |
|---|---|
| Outside Diameter D | 215mm |
| Width B | 40mm |
| Min radius r | 2.1mm |
| Dynamic load | 145000 kN |
| Static load | 118000 kN |
| Max speed in oil | 3400 rpm |
| Max speed in grease | 2900 rpm |
| da min | 132mm |
| Da max | 203mm |
| ra max | 2mm |
| Weight | 5.15 kg |
