SKU: 6226-EU

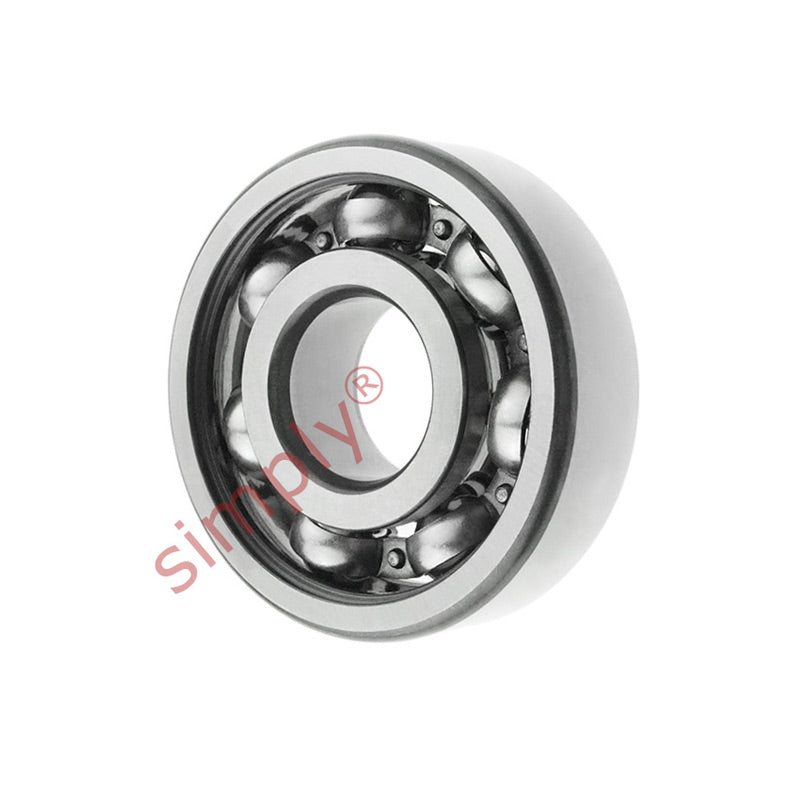

6226 Budget Open Type Deep Groove Ball Bearing 130x230x40mm
6226 Budget Open Type Deep Groove Ball Bearing 130x230x40mm
Regular price
€203,53
ex VAT
Regular price
Sale price
€203,53
ex VAT
In stock
Price Break
4+
€154,67
10+
€145,98
20+
€144,24
30+
€142,50
50+
€140,77
75+
€139,03
100+
€130,34
201+
€128,60
250+
€126,86
500+
€125,13
1000+
€121,65
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Budget Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 230mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 130mm |
|---|---|
| D | 230mm |
| B | 40mm |
| r min | 3mm |
| Dynamic load Cr | 167 kN |
| Static load Cor | 146 kN |
| Speed in grease | 2700 rpm |
| Speed in oil | 3200 rpm |
