SKU: 62301-2RS1/C3-SKF

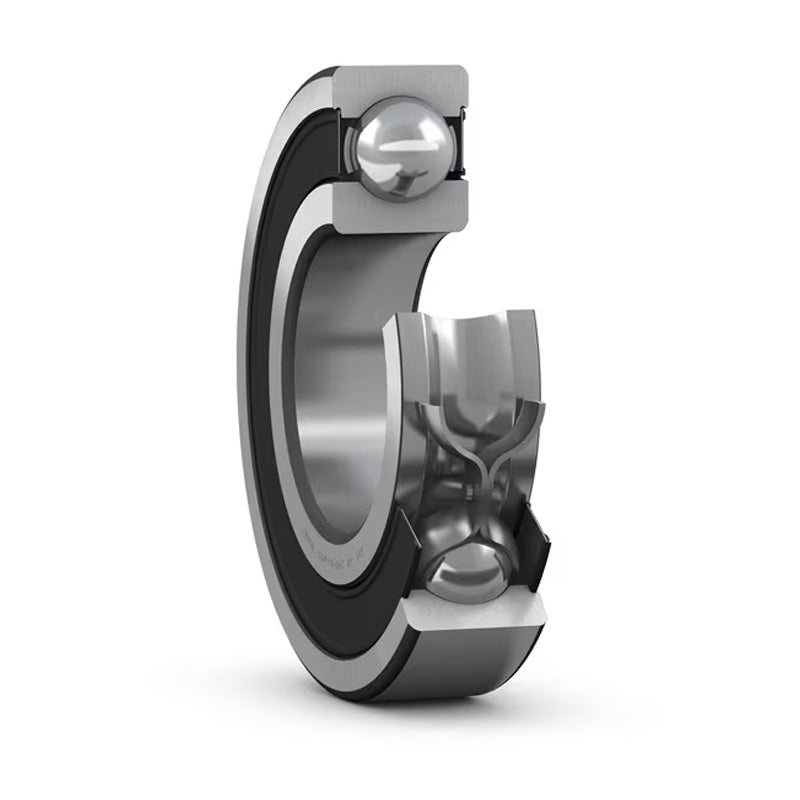

SKF 623012RS1C3 Rubber Sealed Deep Groove Ball Bearing 12x37x17mm
SKF 623012RS1C3 Rubber Sealed Deep Groove Ball Bearing 12x37x17mm
Equivalent to: 62301NSEC3 62301DUC3 62301RSC3 62301RSHC3 62301PC3 62301RSRC3 62301LUC3 623012NSEC3 62301DDUC3 623012RSC3 623012RSHC3 62301PPC3 623012RSRC3 62301LLU
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 37mm
- Width:
- 17mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 12mm |
|---|---|
| D | 37mm |
| B | 17mm |
| Dynamic load C | 9.75 kN |
| Static load Co | 4.15 kN |
| Fatigue load limit Pu | 0.176 kN |
| Reference speed | 45000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.07 kg |
| d1 | 19.5mm |
| D2 | 31.5mm |
| r1r2 min | 1mm |
| da min | 17.6mm |
| Da max | 31.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 11 |
