SKU: 62301-2RSR-FAG

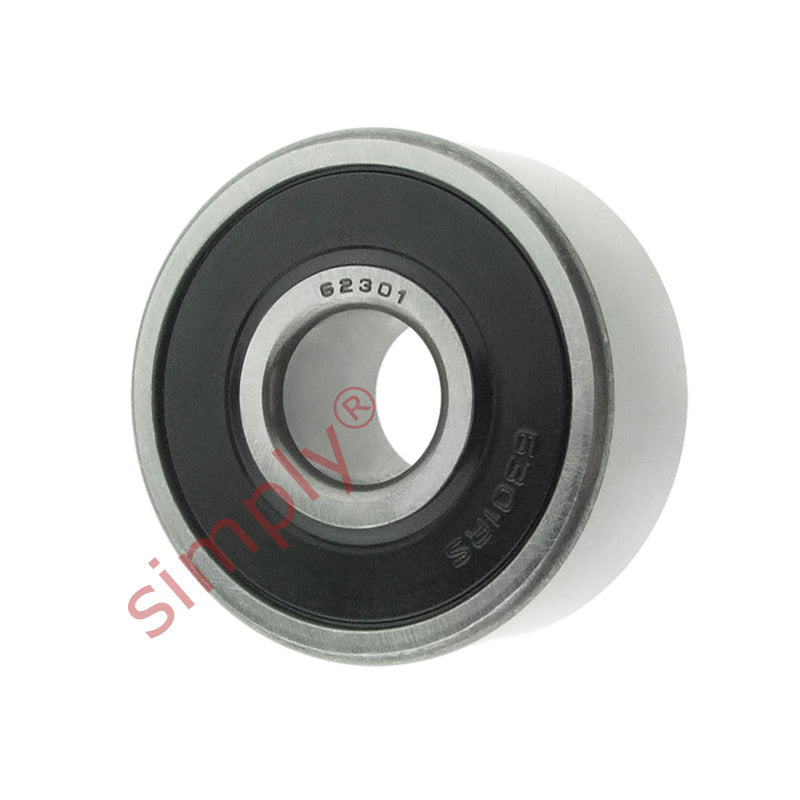

FAG 623012RSR Rubber Sealed Deep Groove Ball Bearing 12x37x17mm
FAG 623012RSR Rubber Sealed Deep Groove Ball Bearing 12x37x17mm
Regular price
€25,94
ex VAT
Regular price
Sale price
€25,94
ex VAT
Equivalent to: 62301NSE 62301DU 62301RS 62301RSH 62301P 62301RSR 62301LU 623012NSE 62301DDU 623012RS 623012RS1 623012RSH 62301PP 62301LLU
In stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 37mm
- Width:
- 17mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 12mm |
|---|---|
| D | 37mm |
| B | 17mm |
| Dynamic load C | 9.75 kN |
| Static load Co | 4.15 kN |
| Fatigue load limit Pu | 0.176 kN |
| Reference speed | 45000 rpm |
| Limiting speed | 14000 rpm |
| Mass | 0.07 kg |
| d1 | 19.5mm |
| D2 | 31.5mm |
| r1r2 min | 1mm |
| da min | 17.6 |
