SKU: 6232-ZZ-NACHI

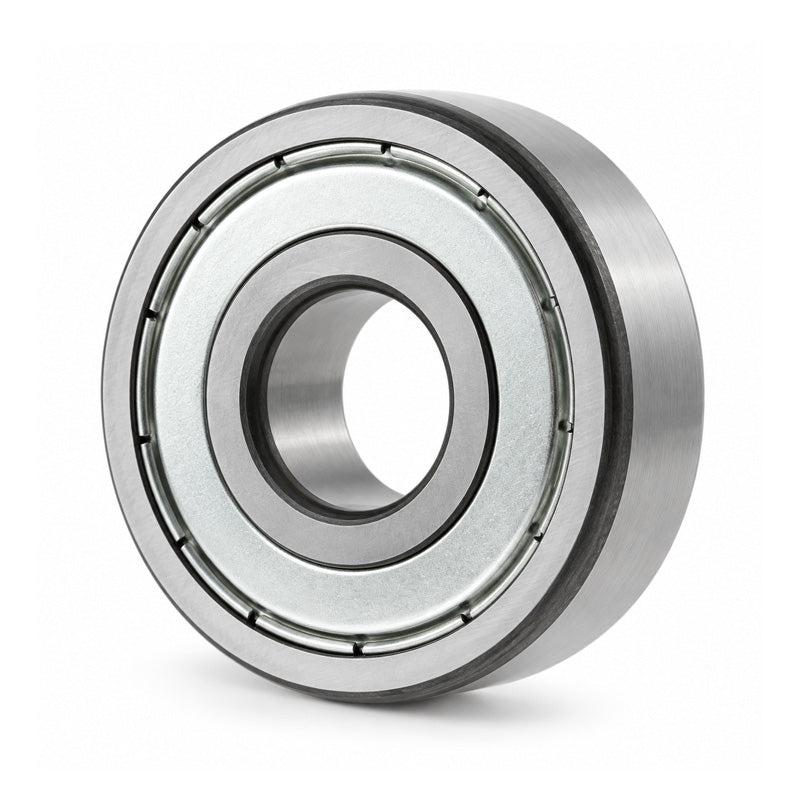

NACHI 6232ZZ Metal Shielded Deep Groove Ball Bearing 160x290x48mm
NACHI 6232ZZ Metal Shielded Deep Groove Ball Bearing 160x290x48mm
Equivalent to: 6232ZZE 62322Z 6232.2Z 6232KDD 6232DD 62322ZR 6232FF
Out of stock
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 290mm
- Width:
- 48mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 160mm |
|---|---|
| Outside Diameter D | 290mm |
| Width B | 48mm |
| Min radius r | 3mm |
| Dynamic load | 185000 kN |
| Static load | 186000 kN |
| Max speed | 2100 rpm |
| da min | 174mm |
| Da max | 276mm |
| ra max | 2.5mm |
| Weight | 14.3 kg |
