SKU: 6238C3-NTN

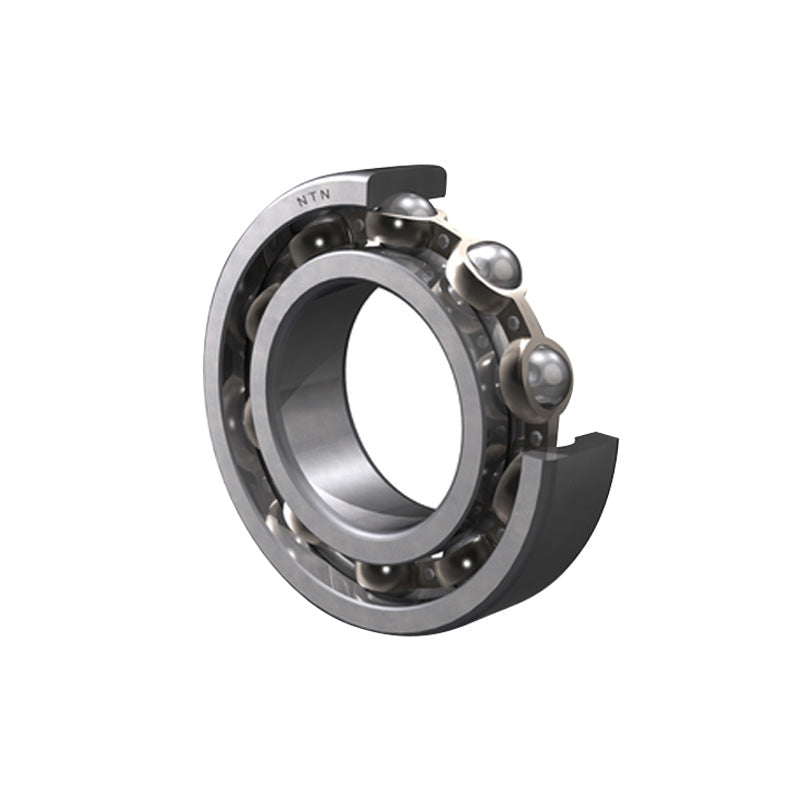

NTN 6238C3 Open Type Deep Groove Ball Bearing 190x340x55mm
NTN 6238C3 Open Type Deep Groove Ball Bearing 190x340x55mm
Regular price
€2.041,83
ex VAT
Regular price
Sale price
€2.041,83
ex VAT
Equivalent to: 238KC3 1238C3 238SC3 6238C3 3238C3
In stock
Price Break
3+
€1.551,70
5+
€1.464,52
10+
€1.447,09
25+
€1.429,65
49+
€1.412,22
74+
€1.394,78
99+
€1.307,61
199+
€1.290,18
249+
€1.272,74
499+
€1.255,31
999+
€1.220,44
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 190mm
- Outside Diameter:
- 340mm
- Width:
- 55mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 190mm |
| D | 340mm |
| B | 55mm |
| r<sub>s</sub> min | 4mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 282 kN |
| C<sub>or</sub> | 281 kN |
| C<sub>u</sub> | 13.5 kN |
| f<sub>0</sub> | 15 kN |
| Grease | 1800 rpm |
| Oil | 2100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 206mm |
| D<sub>a</sub> Max. | 324mm |
| r<sub>as</sub> Max. | 3mm |
| Weight | 18.2 kg |
