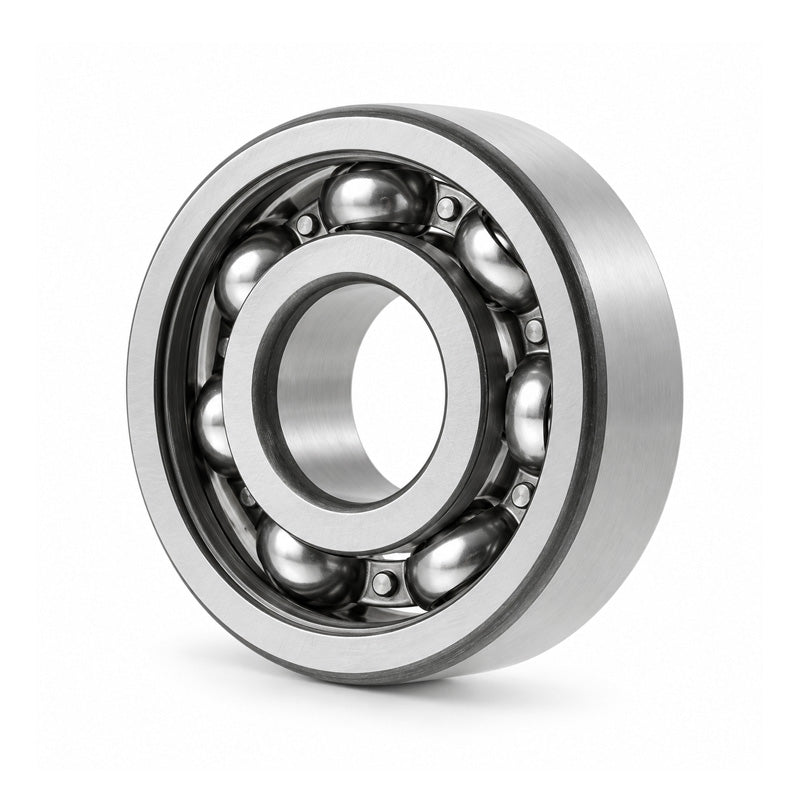

NACHI 63/22C3 Open Deep Groove Ball Bearing 22x56x16mm
NACHI 63/22C3 Open Deep Groove Ball Bearing 22x56x16mm
Out of stock
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 56mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 22mm |
|---|---|
| Outside Diameter D | 56mm |
| Width B | 16mm |
| Min radius r | 1.1mm |
| Dynamic load | 18400 kN |
| Static load | 9250 kN |
| Max speed in oil | 16000 rpm |
| Max speed in grease | 13000 rpm |
| da min | 29mm |
| Da max | 49mm |
| ra max | 1mm |
| Weight | 0.176 kg |
