SKU: 6300-2NSE-NACHI

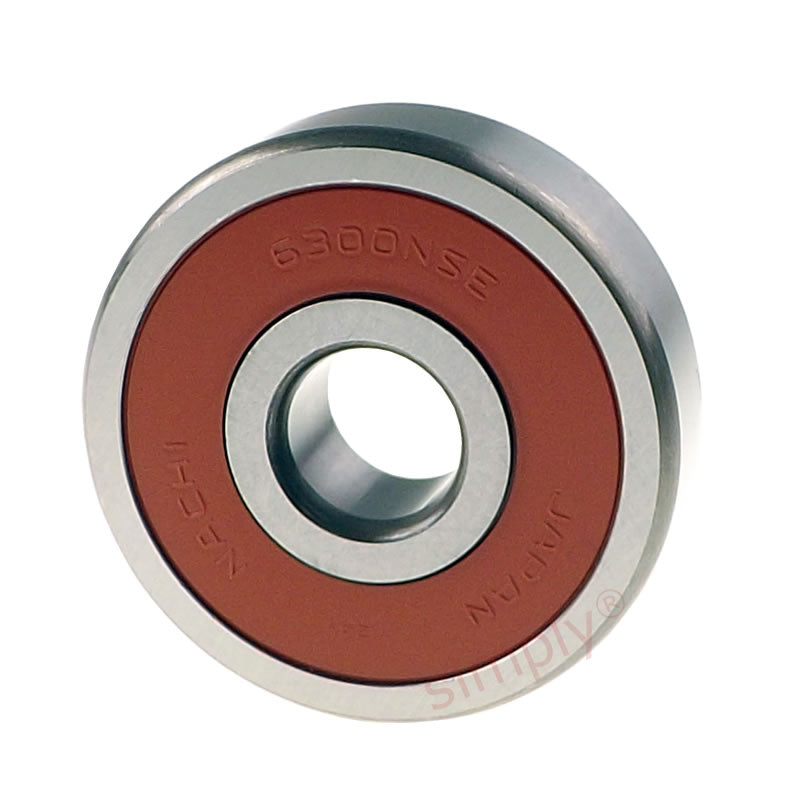

NACHI 63002NSE Contact Rubber Sealed Deep Groove Ball Bearing 10x35x11mm
NACHI 63002NSE Contact Rubber Sealed Deep Groove Ball Bearing 10x35x11mm
Regular price
€7,31
ex VAT
Regular price
Sale price
€7,31
ex VAT
Equivalent to: 63002DU 63002RS 63002RSH 63002P 63002RSR 63002LU
In stock
Price Break
5+
€5,55
9+
€5,24
19+
€5,18
29+
€5,11
49+
€5,05
74+
€4,99
99+
€4,68
199+
€4,62
249+
€4,55
499+
€4,49
999+
€4,37
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical

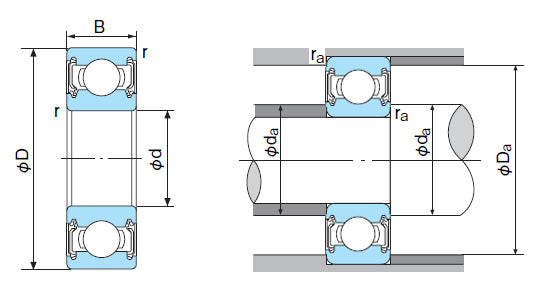

| Inside Diameter d | 10mm |
|---|---|
| Outside Diameter D | 35mm |
| Width B | 11mm |
| Min radius r | 0.6mm |
| Dynamic load | 8100 kN |
| Static load | 3450 kN |
| Max speed | 23000 rpm |
| da min | 15mm |
| Da max | 30mm |
| ra max | 0.6mm |
| Weight | 0.053 kg |
