SKU: 63000-2RS1/C3-SKF

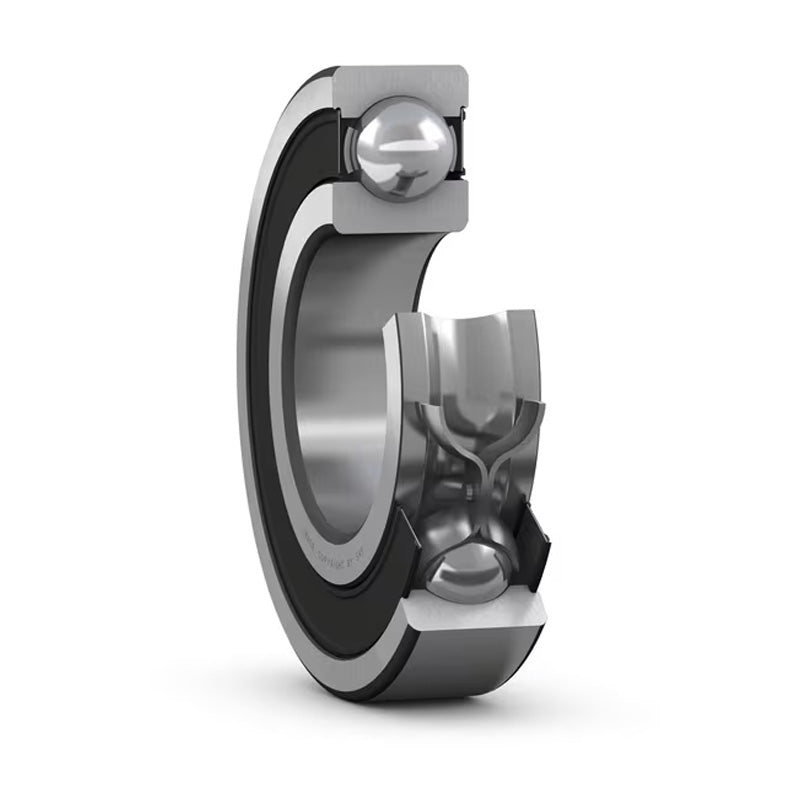

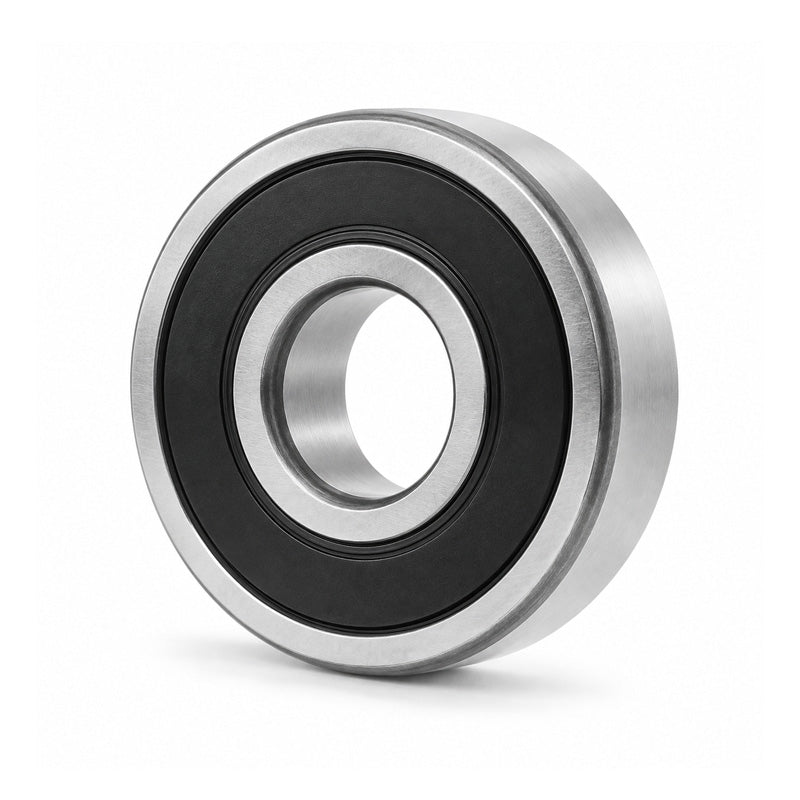

SKF 630002RS1C3 Rubber Sealed Deep Groove Ball Bearing 10x26x12mm
SKF 630002RS1C3 Rubber Sealed Deep Groove Ball Bearing 10x26x12mm
Equivalent to: 63000NSEC3 63000DUC3 63000RSC3 63000RSHC3 63000PC3 63000RSRC3 63000LUC3 630002NSEC3 63000DDUC3 630002RSC3 630002RSHC3 63000PPC3 630002RSRC3 63000LLU
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 26mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 10mm |
|---|---|
| D | 26mm |
| B | 12mm |
| Dynamic load C | 4.62 kN |
| Static load Co | 1.96 kN |
| Fatigue load limit Pu | 0.083 kN |
| Reference speed | 67000 rpm |
| Limiting speed | 19000 rpm |
| Weight | 0.025 kg |
| d1 | 16.7mm |
| D2 | 24.8mm |
| r1r2 min | 0.6mm |
| da min | 14.2mm |
| Da max | 23.8mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 13 |
