SKU: 6301-2NSE-NACHI

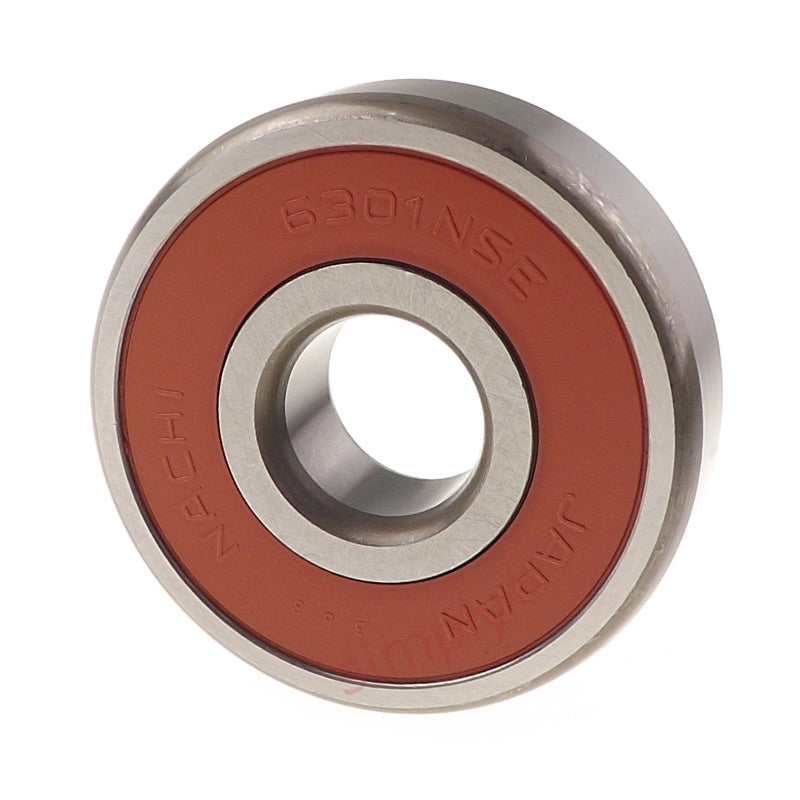

NACHI 63012NSE Contact Rubber Sealed Deep Groove Ball Bearing 12x37x12mm
NACHI 63012NSE Contact Rubber Sealed Deep Groove Ball Bearing 12x37x12mm
Regular price
€7,50
ex VAT
Regular price
Sale price
€7,50
ex VAT
Equivalent to: 6301NSE 6301DU 6301RS 6301RSH 6301P 6301RSR 6301LU 6301DDU 63012RS 63012RS1 63012RSH 6301PP 63012RSR 63012RSR
In stock
Price Break
5+
€5,69
9+
€5,37
19+
€5,31
29+
€5,24
49+
€5,18
74+
€5,12
99+
€4,80
199+
€4,73
249+
€4,67
499+
€4,60
999+
€4,48
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 37mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 12mm |
|---|---|
| Outside Diameter D | 37mm |
| Width B | 12mm |
| Min radius r | 1mm |
| Dynamic load | 9750 kN |
| Static load | 4250 kN |
| Max speed | 20000 rpm |
| da min | 18mm |
| Da max | 31mm |
| ra max | 1mm |
| Weight | 0.06 kg |
