SKU: 6302-2RSH/C3-EU

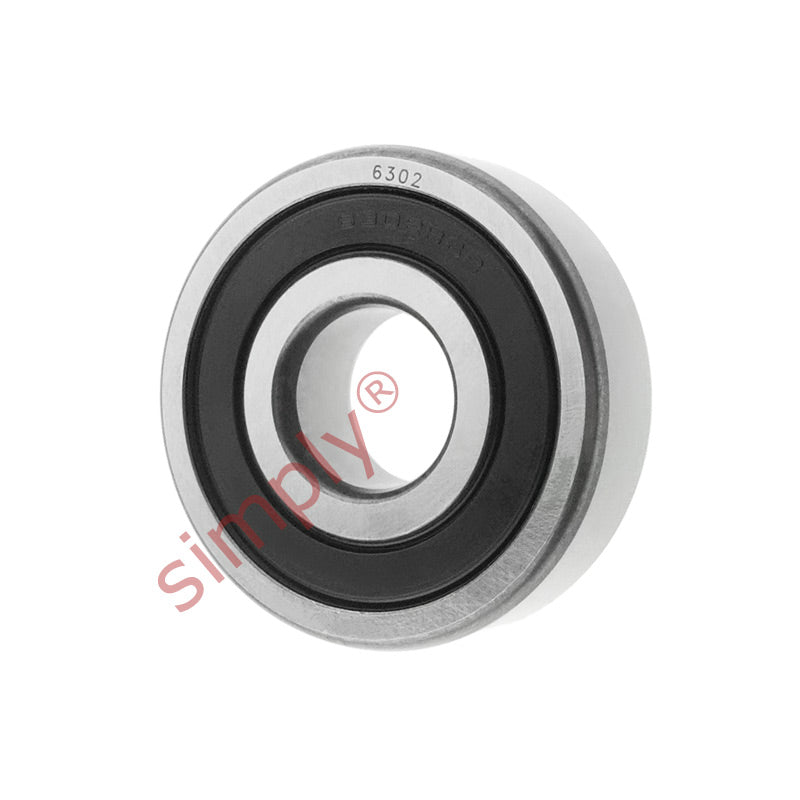

63022RSC3 Budget Rubber Sealed Deep Groove Ball Bearing 15x42x13mm
Equivalent to: 6302NSEC3 6302DUC3 6302PC3 6302RSRC3 6302LUC3 63022NSEC3 6302DDUC3 6302PPC3 63022RSRC3 6302LLUC3 63022RSC3 6302RS2C3 63022RS2C3 63022RS1C3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 15mm |
|---|---|
| D | 42mm |
| B | 13mm |
| r min | 1mm |
| Dynamic load Cr | 11.4 kN |
| Static load Cor | 5.45 kN |
| Speed in grease | 17000 rpm |
| Speed in oil | 20000 rpm |
