SKU: 6302-ZZE-NACHI

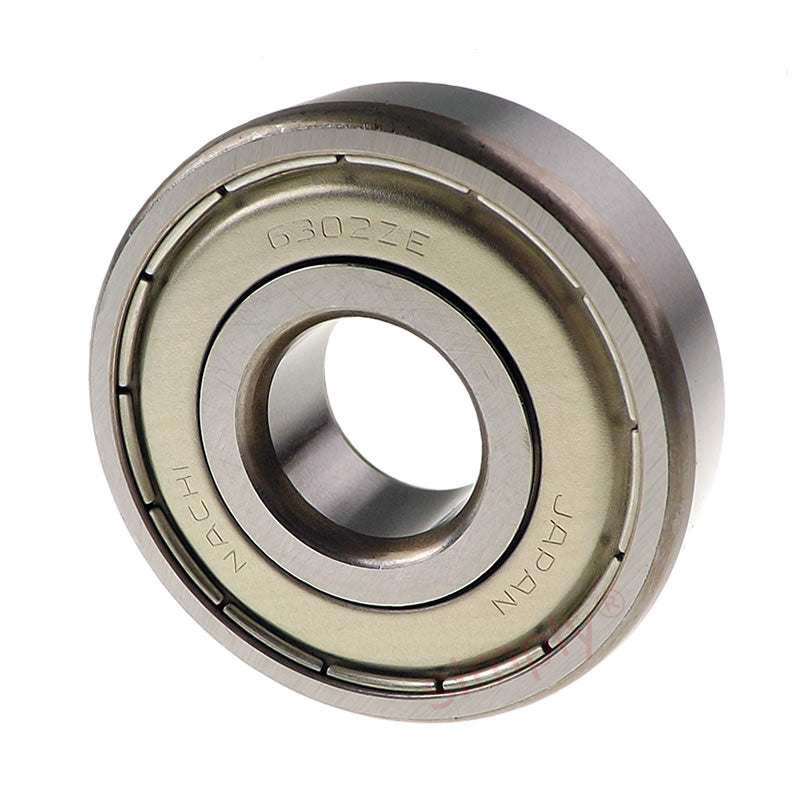

NACHI 6302ZZE Metal Shielded Deep Groove Ball Bearing 15x42x13mm
NACHI 6302ZZE Metal Shielded Deep Groove Ball Bearing 15x42x13mm
Regular price
€7,17
ex VAT
Regular price
Sale price
€7,17
ex VAT
Equivalent to: 6302ZZ 63022Z 6302.2Z 6302KDD 6302DD 63022ZR 6302FF
In stock
Price Break
5+
€5,44
9+
€5,14
19+
€5,08
29+
€5,02
49+
€4,95
74+
€4,89
99+
€4,59
199+
€4,53
249+
€4,46
499+
€4,40
999+
€4,28
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 15mm |
|---|---|
| Outside Diameter D | 42mm |
| Width B | 13mm |
| Min radius r | 1mm |
| Dynamic load | 11400 kN |
| Static load | 5400 kN |
| Max speed | 17000 rpm |
| da min | 21mm |
| Da max | 36mm |
| ra max | 1mm |
| Weight | 0.082 kg |
