SKU: 6303NR-NTN

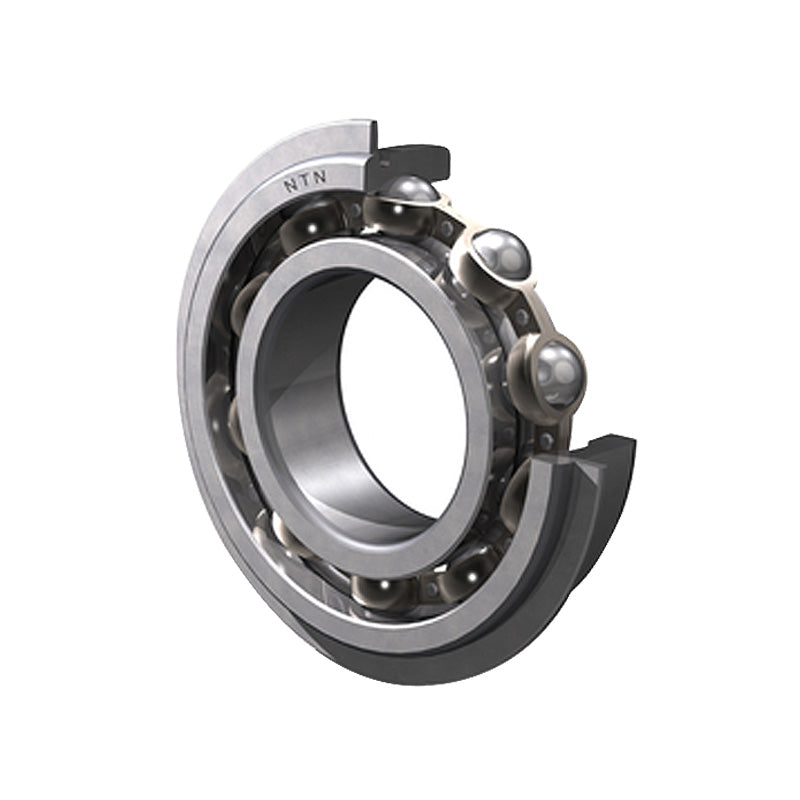

NTN 6303NR Open Type Deep Groove Ball Bearing with Snap Ring 17x47x14mm
NTN 6303NR Open Type Deep Groove Ball Bearing with Snap Ring 17x47x14mm
Regular price
€13,44
ex VAT
Regular price
Sale price
€13,44
ex VAT
Equivalent to: 6303NRCM 303KG 303SG 43303
In stock
Price Break
3+
€10,22
5+
€9,64
10+
€9,53
25+
€9,41
49+
€9,30
74+
€9,18
99+
€8,61
199+
€8,50
249+
€8,38
499+
€8,27
999+
€8,04
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 17mm |
| D | 47mm |
| B | 14mm |
| r<sub>s</sub> min | 1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 15 kN |
| C<sub>or</sub> | 6.55 kN |
| C<sub>u</sub> | 0.51 kN |
| f<sub>0</sub> | 12.2 kN |
| Grease | 16000 rpm |
| Oil | 19000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 44.6mm |
| a Max. | 2.46mm |
| b Min. | 1.35mm |
| r<sub>o</sub> Max. | 0.4mm |
| D<sub>2</sub> Max. | 52.7mm |
| f Max. | 1.12mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 22mm |
| d<sub>a</sub> Max. | 25mm |
| D<sub>a</sub> Max. | 42mm |
| D<sub>X</sub> (approx) | 53.5mm |
| C<sub>Y</sub> Max. | 3.3mm |
| C<sub>Z</sub> Min. | 1.2mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.115 kg |
