SKU: 6304-2NSE-NACHI

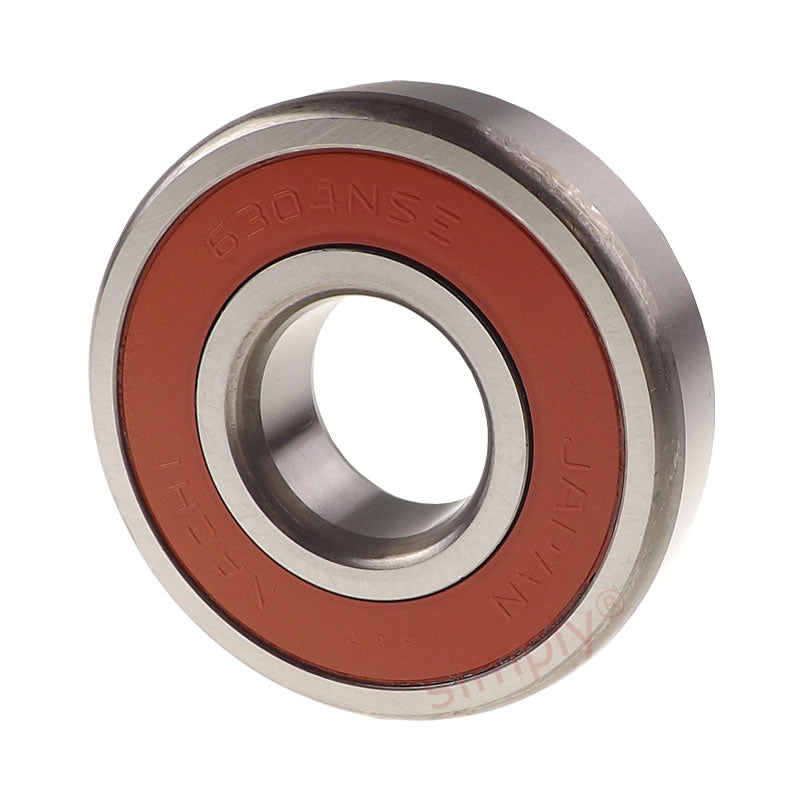

NACHI 63042NSE Contact Rubber Sealed Deep Groove Ball Bearing 20x52x15mm
NACHI 63042NSE Contact Rubber Sealed Deep Groove Ball Bearing 20x52x15mm
Regular price
€10,58
ex VAT
Regular price
Sale price
€10,58
ex VAT
Equivalent to: 6304NSE 6304DU 6304RS 6304RSH 6304P 6304RSR 6304LU 6304DDU 63042RS 63042RS1 63042RSH 6304PP 63042RSR 63042RSR
In stock
Price Break
5+
€8,04
9+
€7,59
19+
€7,50
29+
€7,41
49+
€7,32
74+
€7,22
99+
€6,77
199+
€6,68
249+
€6,59
499+
€6,50
999+
€6,32
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 52mm |
| Width B | 15mm |
| Min radius r | 1.1mm |
| Dynamic load | 15900 kN |
| Static load | 7900 kN |
| Max speed | 14000 rpm |
| da min | 27mm |
| Da max | 45mm |
| ra max | 1.1mm |
| Weight | 0.144 kg |
