SKU: 6304-T-N9-C4-FAG

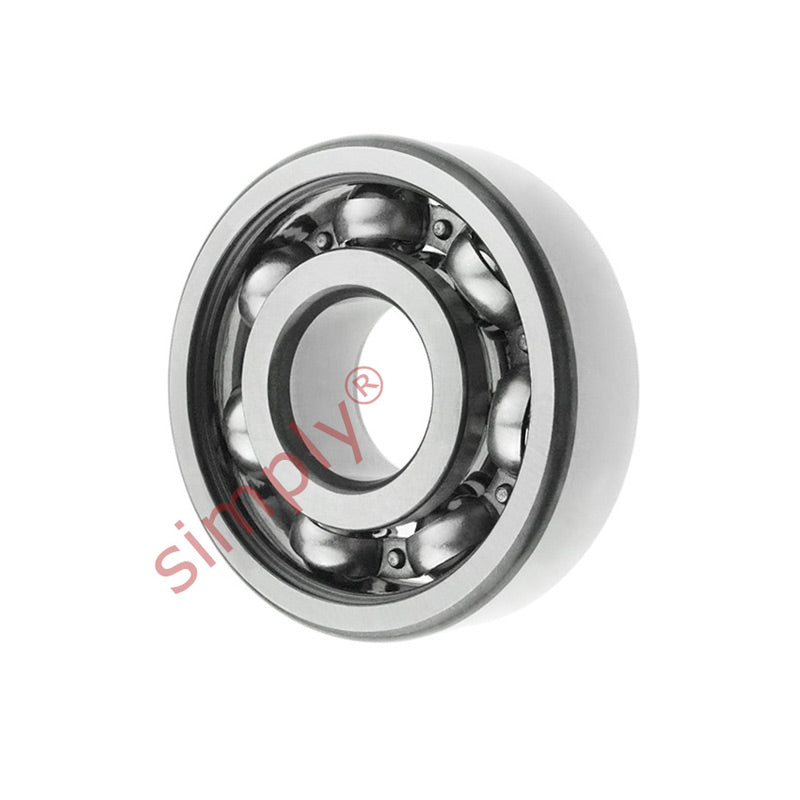

FAG 6304TN9C4 Open Deep Groove Ball Bearing 20x52x15mm
FAG 6304TN9C4 Open Deep Groove Ball Bearing 20x52x15mm
Equivalent to: 6304TN9C4
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 16.8 kN |
| Static load Co | 7.8 kN |
| Fatigue load limit Pu | 0.335 kN |
| Reference speed | 30000 rpm |
| Limiting speed | 19000 rpm |
| Mass | 0.14 kg |
| d1 | 30.4mm |
| D1 | 41.6mm |
| D2 | 44.8mm |
| r1r2 min | 1.1mm |
| da min | 27mm |
| Da max | 45mm |
| ra max | 1mm |
| Calc factor Kr | 0.03 |
| Calc factor | 12 |
