SKU: 6304NRC3-NTN

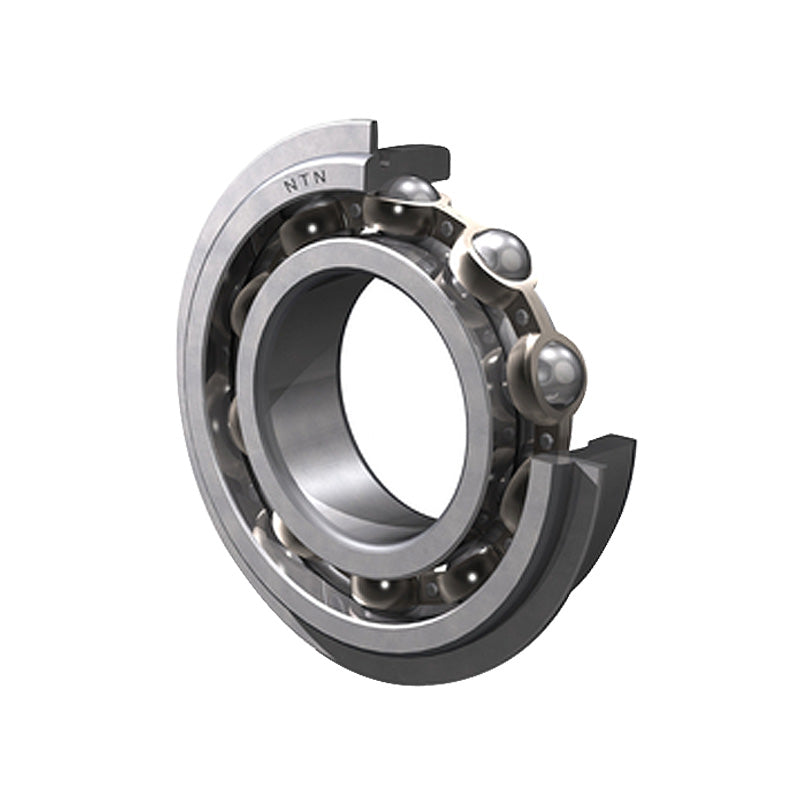

NTN 6304NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 20x52x15mm
NTN 6304NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 20x52x15mm
Regular price
€26,91
ex VAT
Regular price
Sale price
€26,91
ex VAT
Equivalent to: 304KGC3 304SGC3 43304C3
In stock
Price Break
3+
€20,45
5+
€19,30
10+
€19,07
25+
€18,84
49+
€18,61
74+
€18,38
99+
€17,24
199+
€17,01
249+
€16,78
499+
€16,55
999+
€16,09
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 20mm |
| D | 52mm |
| B | 15mm |
| r<sub>s</sub> min | 1.1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 17.6 kN |
| C<sub>or</sub> | 7.9 kN |
| C<sub>u</sub> | 0.615 kN |
| f<sub>0</sub> | 12.4 kN |
| Grease | 14000 rpm |
| Oil | 17000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 49.73mm |
| a Max. | 2.46mm |
| b Min. | 1.35mm |
| r<sub>o</sub> Max. | 0.4mm |
| D<sub>2</sub> Max. | 57.9mm |
| f Max. | 1.12mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 26.5mm |
| d<sub>a</sub> Max. | 28.5mm |
| D<sub>a</sub> Max. | 45.5mm |
| D<sub>X</sub> (approx) | 58.5mm |
| C<sub>Y</sub> Max. | 3.3mm |
| C<sub>Z</sub> Min. | 1.2mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.144 kg |
