SKU: 6306-2NSE-NACHI

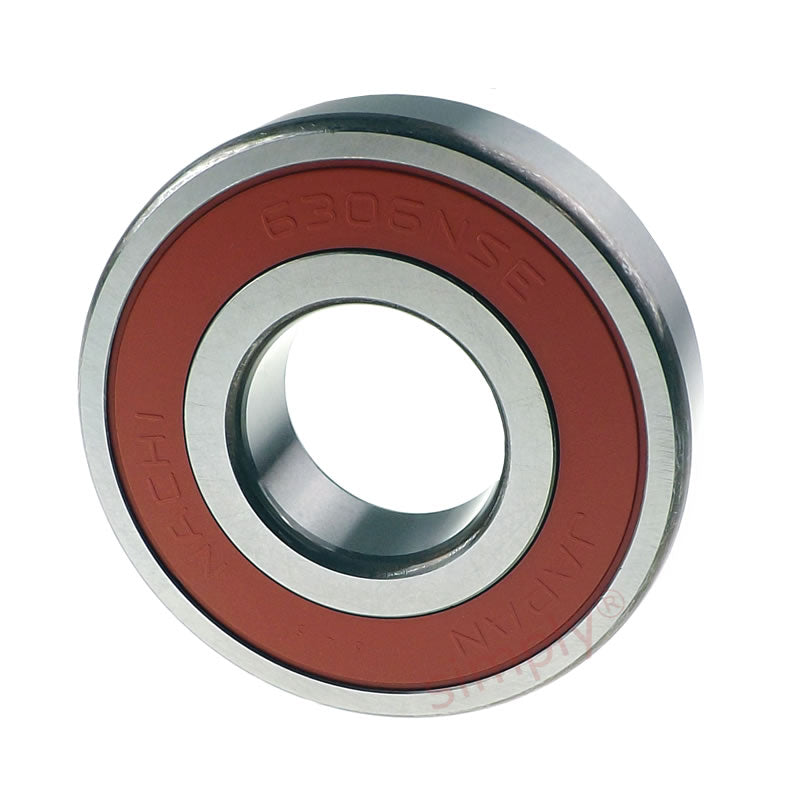

NACHI 63062NSE Contact Rubber Sealed Deep Groove Ball Bearing 30x72x19mm
NACHI 63062NSE Contact Rubber Sealed Deep Groove Ball Bearing 30x72x19mm
Regular price
€17,88
ex VAT
Regular price
Sale price
€17,88
ex VAT
Equivalent to: 6306NSE 6306DU 6306RS 6306RSH 6306P 6306RSR 6306LU 6306DDU 63062RS 63062RS1 63062RSH 6306PP 63062RSR 63062RSR
In stock
Price Break
5+
€13,59
9+
€12,82
19+
€12,67
29+
€12,52
49+
€12,37
74+
€12,21
99+
€11,45
199+
€11,30
249+
€11,15
499+
€10,99
999+
€10,69
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 30mm |
|---|---|
| Outside Diameter D | 72mm |
| Width B | 19mm |
| Min radius r | 1.1mm |
| Dynamic load | 26700 kN |
| Static load | 15000 kN |
| Max speed | 10000 rpm |
| da min | 37mm |
| Da max | 65mm |
| ra max | 1mm |
| Weight | 0.346 kg |
