SKU: 6306NR-NTN

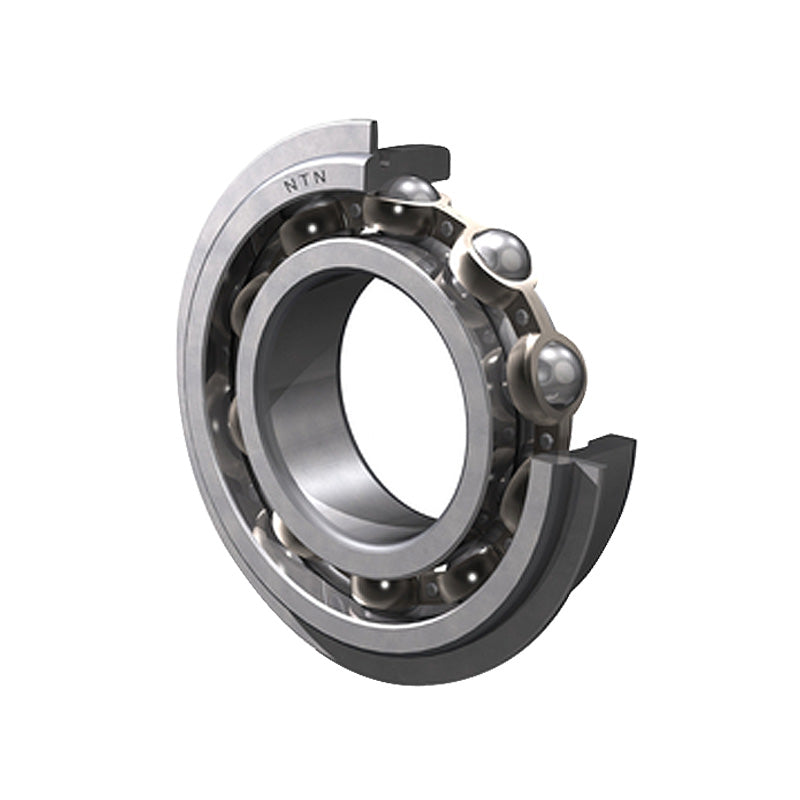

NTN 6306NR Open Type Deep Groove Ball Bearing with Snap Ring 30x72x19mm
NTN 6306NR Open Type Deep Groove Ball Bearing with Snap Ring 30x72x19mm
Regular price
€37,05
ex VAT
Regular price
Sale price
€37,05
ex VAT
Equivalent to: 6306NRCM 306KG 306SG 43306
In stock
Price Break
3+
€28,16
5+
€26,58
10+
€26,26
25+
€25,94
49+
€25,63
74+
€25,31
99+
€23,73
199+
€23,41
249+
€23,10
499+
€22,78
999+
€22,15
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 30mm |
| D | 72mm |
| B | 19mm |
| r<sub>s</sub> min | 1.1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 29.5 kN |
| C<sub>or</sub> | 15 kN |
| C<sub>u</sub> | 1.14 kN |
| f<sub>0</sub> | 13.3 kN |
| Grease | 10000 rpm |
| Oil | 12000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 68.81mm |
| a Max. | 3.28mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 78.6mm |
| f Max. | 1.7mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 36.5mm |
| d<sub>a</sub> Max. | 43mm |
| D<sub>a</sub> Max. | 65.5mm |
| D<sub>X</sub> (approx) | 80mm |
| C<sub>Y</sub> Max. | 4.6mm |
| C<sub>Z</sub> Min. | 1.7mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.36 kg |
