SKU: 6307-ZZ-CDX

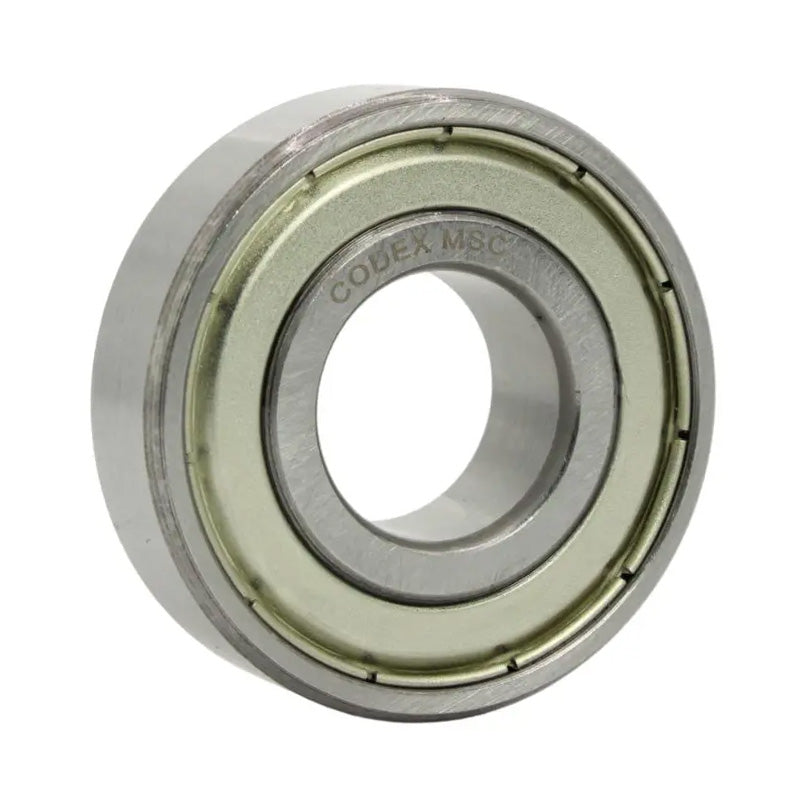

Codex 6307ZZ Metal Shielded Deep Groove Ball Bearing 35x80x21mm
Equivalent to: 6307ZZ 63072Z 63072ZR 6307ZZE 6307FF 6307DD 6307DDC 6307KDDC EL35ZZ EL352Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 35mm |
|---|---|
| D | 80mm |
| B | 21mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 19 kN |
| Fatigue load limit Pu | 0.815 |
| Reference speed | 19000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.46 kg |
| d1 | 49.6mm |
| D2 | 69.2mm |
| r1r2 min | 1.5mm |
| da min | 44mm |
| Da max | 71mm |
| ra max | 1.5 |
| Calc factor kr | 0.03 |
| Calc factor Cor f0 | 13 |
