SKU: 6308-2NSE-NACHI

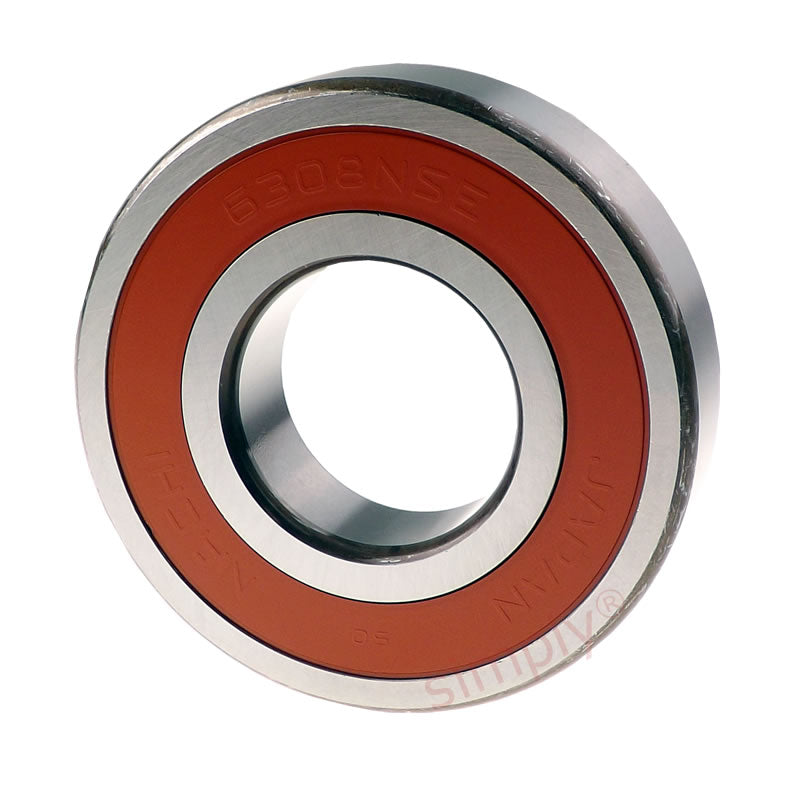

NACHI 63082NSE Contact Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
NACHI 63082NSE Contact Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
Regular price
€33,15
ex VAT
Regular price
Sale price
€33,15
ex VAT
Equivalent to: 6308NSE 6308DU 6308RS 6308RSH 6308P 6308RSR 6308LU 6308DDU 63082RS 63082RS1 63082RSH 6308PP 63082RSR 63082RSR
In stock
Price Break
5+
€25,19
9+
€23,78
19+
€23,50
29+
€23,21
49+
€22,93
74+
€22,65
99+
€21,23
199+
€20,95
249+
€20,66
499+
€20,38
999+
€19,82
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 40mm |
|---|---|
| Outside Diameter D | 90mm |
| Width B | 23mm |
| Min radius r | 1.5mm |
| Dynamic load | 40500 kN |
| Static load | 24100 kN |
| Max speed | 7800 rpm |
| da min | 49mm |
| Da max | 81mm |
| ra max | 1.5mm |
| Weight | 0.633 kg |
