SKU: 6308-2RS1/C3-EU

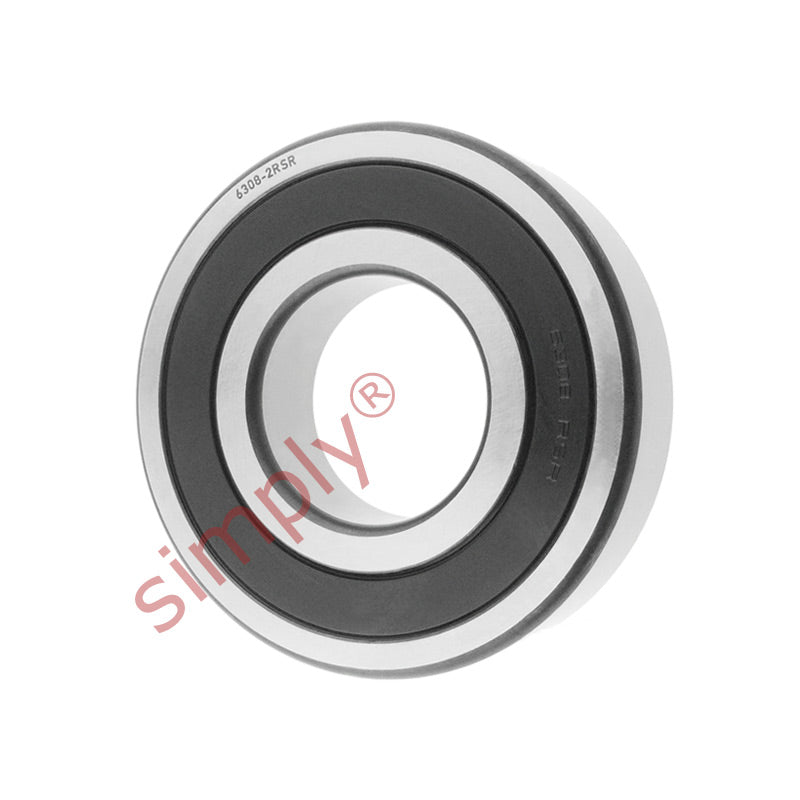

63082RSC3 Budget Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
Equivalent to: 6308NSEC3 6308DUC3 6308RSC3 6308RSHC3 6308PC3 6308RSRC3 6308LUC3 63082NSEC3 6308DDUC3 6308PPC3 63082RSRC3 6308LLUC3 63082RSC3 63082RSC3 63082RS2C3 63082RS1C3 63082RSHC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| r min | 1.5mm |
| Dynamic load Cr | 40.7 kN |
| Static load Cor | 24 kN |
| Speed in grease | 7700 rpm |
| Speed in oil | 9200 rpm |
