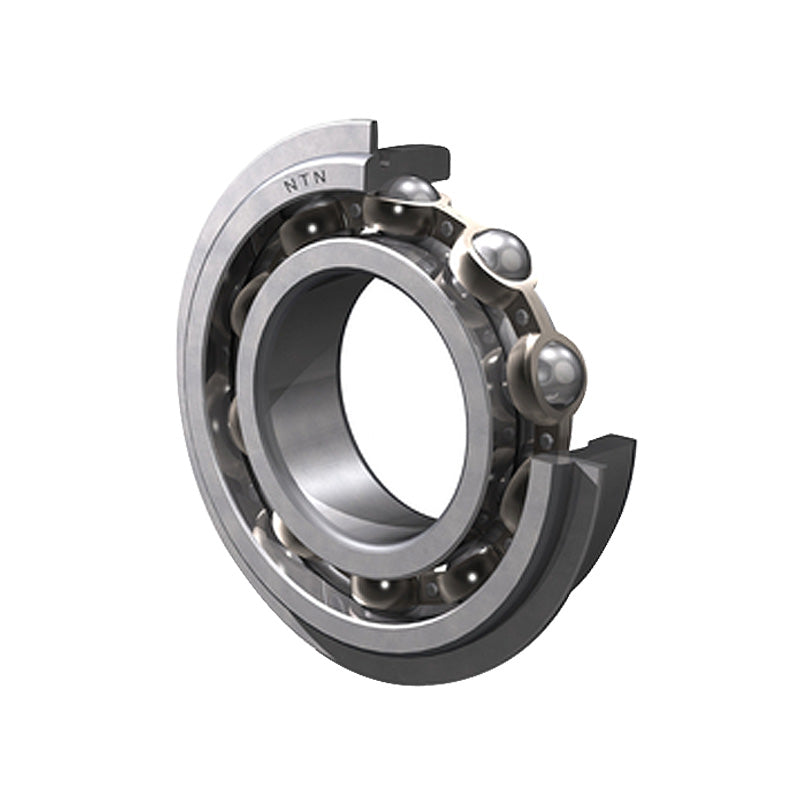

NTN 6308NR Open Type Deep Groove Ball Bearing with Snap Ring 40x90x23mm
NTN 6308NR Open Type Deep Groove Ball Bearing with Snap Ring 40x90x23mm
Regular price
€66,13
ex VAT
Regular price
Sale price
€66,13
ex VAT
Equivalent to: 6308NRCM 308KG 308SG 43308
In stock
Price Break
3+
€50,26
5+
€47,43
10+
€46,87
25+
€46,31
49+
€45,74
74+
€45,18
99+
€42,35
199+
€41,79
249+
€41,22
499+
€40,66
999+
€39,53
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 90mm |
| B | 23mm |
| r<sub>s</sub> min | 1.5mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 45 kN |
| C<sub>or</sub> | 24 kN |
| C<sub>u</sub> | 1.83 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 7800 rpm |
| Oil | 9200 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 86.79mm |
| a Max. | 3.28mm |
| b Min. | 2.7mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 96.5mm |
| f Max. | 2.46mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 48mm |
| d<sub>a</sub> Max. | 54mm |
| D<sub>a</sub> Max. | 82mm |
| D<sub>X</sub> (approx) | 98mm |
| C<sub>Y</sub> Max. | 5.4mm |
| C<sub>Z</sub> Min. | 2.5mm |
| r<sub>as</sub> Max. | 1.5mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.63 kg |
