SKU: 6309-ZZ-CDX

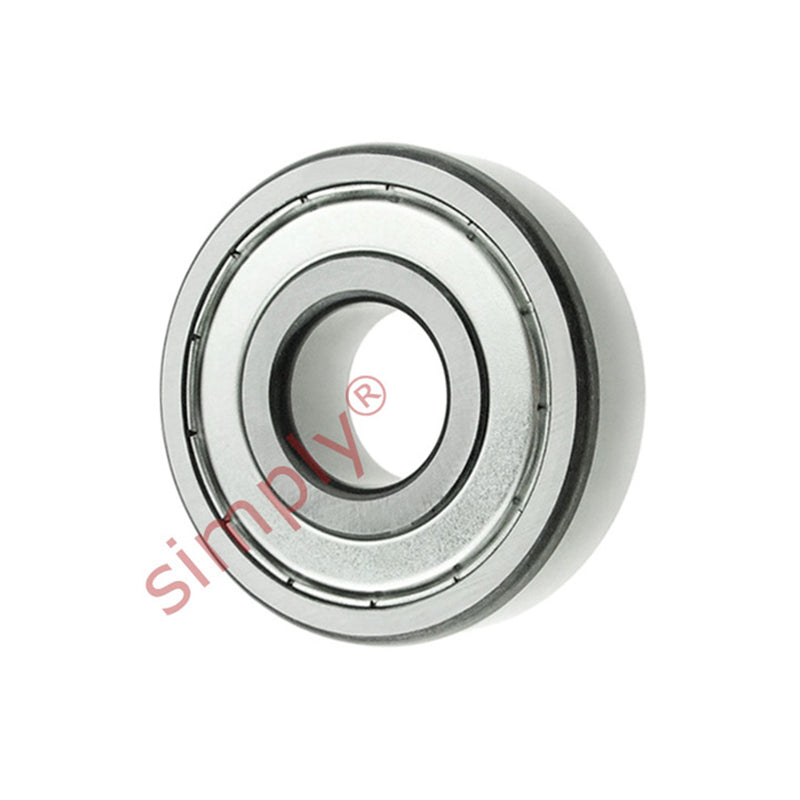

Codex 6309ZZ Metal Shielded Deep Groove Ball Bearing 45x100x25mm
Equivalent to: 6309ZZ 63092Z 63092ZR 6309ZZE 6309FF 6309DD 6309DDC 6309KDDC EL45ZZ EL452Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 55.3 kN |
| Static load Co | 31.5 kN |
| Fatigue load limit Pu | 1.34 |
| Reference speed | 15000 rpm |
| Limiting speed | 7500 rpm |
| Weight | 0.83 kg |
| d1 | 62.2mm |
| D2 | 86.7mm |
| r1r2 min | 1.5mm |
| da min | 54mm |
| Da max | 91mm |
| ra max | 1.5 |
| Calc factor kr | 0.03 |
| Calc factor Cor f0 | 13 |
