SKU: 6309LLU/5K-NTN

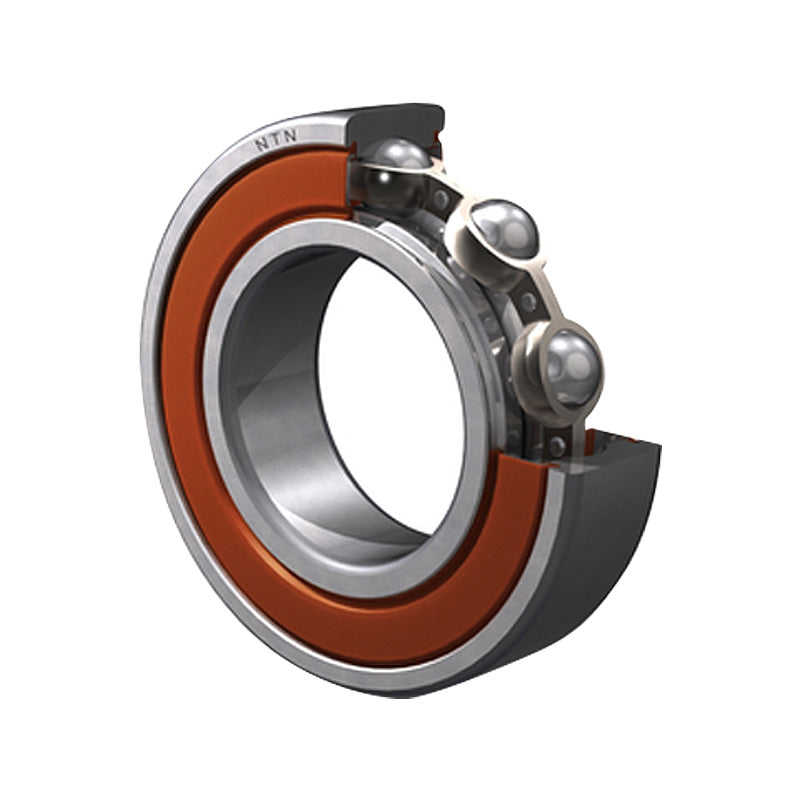

NTN 6309LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 45x100x25mm
Equivalent to: 6309LLUCM 6309NSE 6309DU 6309RS 6309RSH 6309P 6309RSR 6309LU 63092NSE 6309DDU 63092RS 6309-2RS 63092RS1 63092RSH 6309PP 63092RSR 6309LLU 6309RS2 63092RS2 63092RSL 6309LFS 6309EE 309P 309SZ Z9609 1309R
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 45mm |
| D | 100mm |
| B | 25mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 58.5 kN |
| C<sub>or</sub> | 32 kN |
| C<sub>u</sub> | 2.5 kN |
| f<sub>0</sub> | 13.1 kN |
| Speed | 4700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 53mm |
| d<sub>a</sub> Max. | 61.5mm |
| D<sub>a</sub> Max. | 92mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight Kg | 0.814 kg |
