SKU: 6311LLUC3/5K-NTN

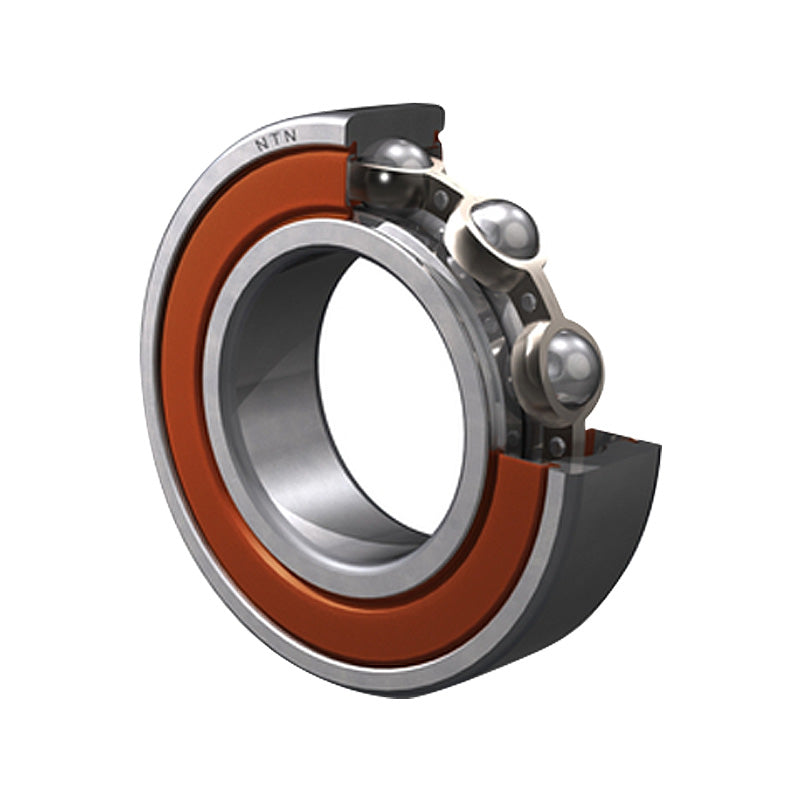

NTN 6311LLUC3/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 55x120x29mm
Equivalent to: 6311NSEC3 6311DUC3 6311RSC3 6311RSHC3 6311PC3 6311RSRC3 6311LUC3 63112NSEC3 6311DDUC3 63112RSC3 6311-2RSC3 63112RS1C3 63112RSHC3 6311PPC3 63112RSRC3 6311LLUC3 6311RS2C3 63112RS2C3 63112RSLC3 6311LFSC3 6311EEC3 311PC3 311SZC3 Z9611C3 1311RC3
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 29mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 55mm |
| D | 120mm |
| B | 29mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 79.5 kN |
| C<sub>or</sub> | 45 kN |
| C<sub>u</sub> | 3.5 kN |
| f<sub>0</sub> | 13.2 kN |
| Speed | 3900 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 64mm |
| d<sub>a</sub> Max. | 74mm |
| D<sub>a</sub> Max. | 111mm |
| r<sub>as</sub> Max. | 2mm |
| Weight Kg | 1.37 kg |
