SKU: 6313-2Z/C3-KOY

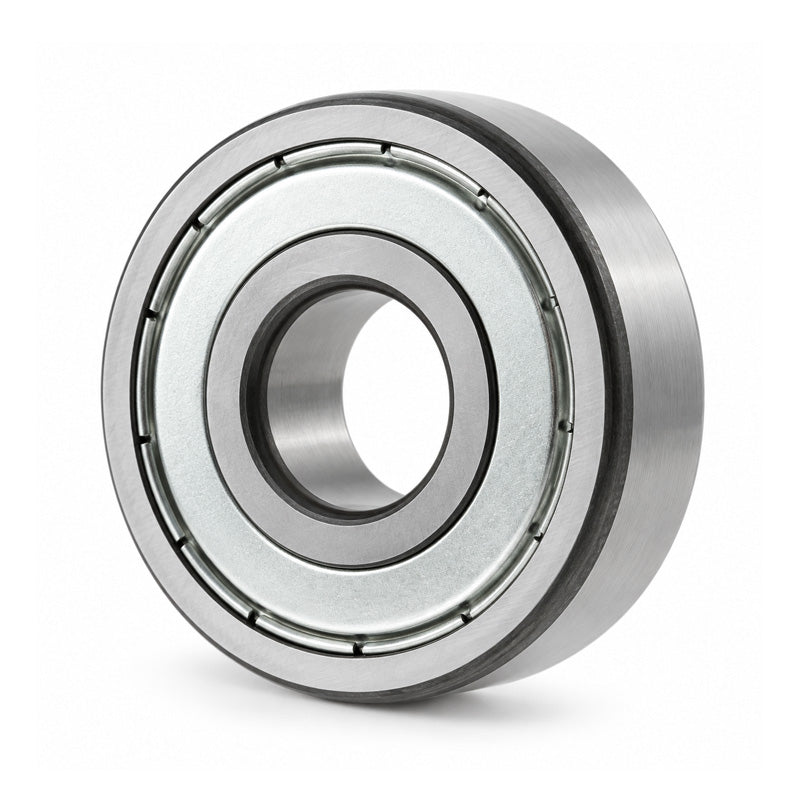

KOYO 63132ZC3 Metal Shielded Deep Groove Ball Bearing 65x140x33mm Allow 7-10 Days
Equivalent to: 6313ZZEC3 6313ZZC3 6313.2ZC3 6313KDDC3 6313DDC3 63132ZRC3 6313FFC3
Out of stock
Share this product
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| Inside Diameter d | 65mm |
|---|---|
| Outside Diameter D | 140mm |
| Width B | 33mm |
| Min radius r | 2.1mm |
| Dynamic load | 92.7 kN |
| Static load | 59.9 kN |
| Max speed in oil | 5800 rpm |
| Max speed in grease | 3200 rpm |
