SKU: 6314-2ZNR-SKF

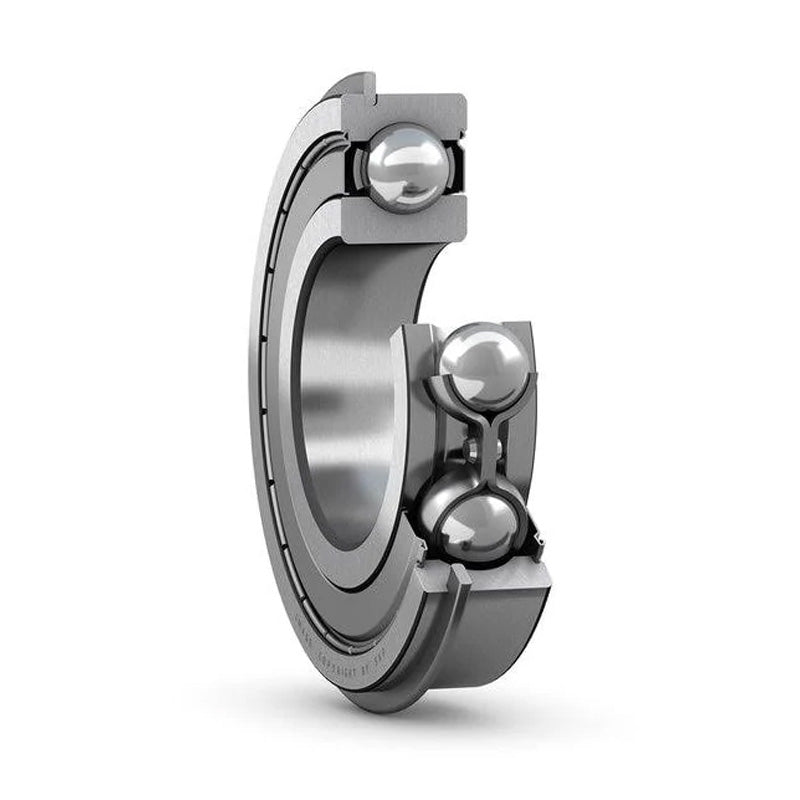

SKF 63142ZNR Sealed Snap Ring Deep Groove Ball Bearing 70x150x35mm
SKF 63142ZNR Sealed Snap Ring Deep Groove Ball Bearing 70x150x35mm
Equivalent to: SKF 63142ZNR ( 6314ZZ )
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 111 kN |
| Static load Co | 68 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 6300 rpm |
| Weight | 2.65 kg |
| Snap ring | SP 150 |
| d1 | 94.9mm |
| D2 | 130mm |
| D3 | 145.25mm |
| D4 | 159.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 4.9mm |
| r1r2 min | 2.1mm |
| ro max | 0.6mm |
| da max | 82mm |
| Da max | 94.9mm |
| Db min | 138mm |
| ba min | 162mm |
| Ca max | 3.5mm |
| ra max | 7.72mm |
| Calculation factor kr | 2 |
| Calculation factor f0 | 0.03 |
